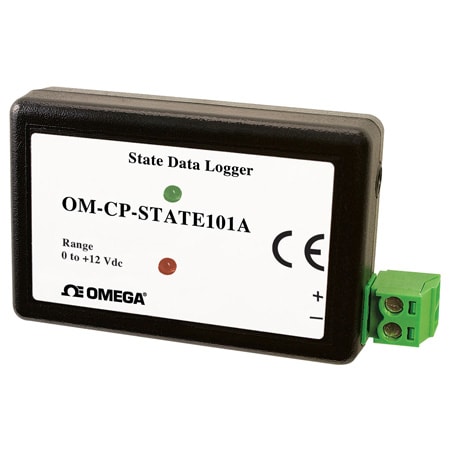

OM-CP-STATE101A-Logger

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Accuracy	Accuracy Detail	Battery life	Battery Size and Type	Baud Rate	Data Interface	Display Measuring Units	Electrical Connection	Height	Impedance Input	Internal Weak Pull-Up	LED Indicators	Length	Materials	Memory	Memory Modes	Multi Start/Stop Mode Note	Number of Measurements	Operating Temperature, Max	Operating Temperature, Min	Protection	Real Time Recording	Relative Humidity	Resolution	Samples,Max	Sampling Rate	Series ID	Software	Start Modes	Supply Power Type	Voltage Input Range	Weight	Width	수량 / 장바구니
OM-CP-STATE101A215,680 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	± 1 min/month	±1 minute/month at 20°C, stand alone data logging	up to 10 yr	3.6V Li-ion	115200	USB	°C, °F, ft/min, k/h, kts, m/s, mph	Removable Screw Terminal	1.4 in	>60 kΩ	<60 μA	Green LED Blinks: 10 second rate to indicate logging; 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory	0.6 in	ABS, Aluminum	406,323 readings; software configurable memory wrap	Yes	To Start the Device:Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging To Stop the Device:Press and hold the pushbutton for 5 seconds, the red LED will flash for 3 seconds and then the green LED will flash for two seconds. The device has stopped logging	1	80 °C	-40 °C	An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.	The device may be used with PC to monitor and record data in real-time	0 to 95% RH non-condensing	4 Hz	0.25 sec	4 Hz (4 updates/second)	OM-CP-STATE101A-Logger	XP SP3/Vista/7 and 8 (32 and 64-bit)	Delayed Start, Immediate Start, Push-button	Battery	0 to 30 vdc	0.9 oz	2.2 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Accuracy

Accuracy Detail

Battery life

Battery Size and Type

Baud Rate

Data Interface

Display Measuring Units

Electrical Connection

Height

Impedance Input

Internal Weak Pull-Up

LED Indicators

Length

Materials

Memory

Memory Modes

Multi Start/Stop Mode Note

Number of Measurements

Operating Temperature, Max

Operating Temperature, Min

Protection

Real Time Recording

Relative Humidity

Resolution

Samples,Max

Sampling Rate

Series ID

Software

Start Modes

Supply Power Type

Voltage Input Range

Weight

Width

수량 / 장바구니

OM-CP-STATE101A215,680 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

± 1 min/month

±1 minute/month at 20°C, stand alone data logging

up to 10 yr

3.6V Li-ion

115200

USB

°C, °F, ft/min, k/h, kts, m/s, mph

Removable Screw Terminal

1.4 in

>60 kΩ

<60 μA

Green LED Blinks: 10 second rate to indicate logging; 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory

0.6 in

ABS, Aluminum

406,323 readings; software configurable memory wrap

Yes

To Start the Device:Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging To Stop the Device:Press and hold the pushbutton for 5 seconds, the red LED will flash for 3 seconds and then the green LED will flash for two seconds. The device has stopped logging

80 °C

-40 °C

An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.

The device may be used with PC to monitor and record data in real-time

0 to 95% RH non-condensing

4 Hz

0.25 sec

4 Hz (4 updates/second)

OM-CP-STATE101A-Logger

XP SP3/Vista/7 and 8 (32 and 64-bit)

Delayed Start, Immediate Start, Push-button

Battery

0 to 30 vdc

0.9 oz

2.2 in
