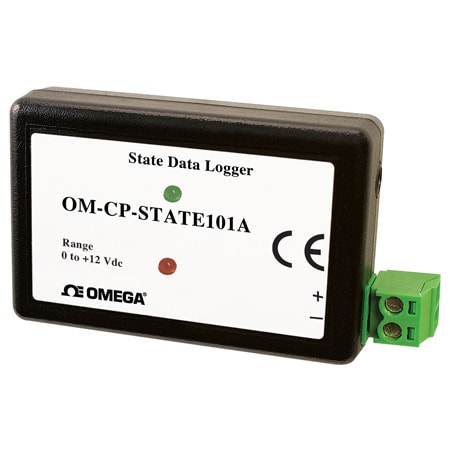

DwyerOmegaOM-CP-STATE101A-Logger

OM-CP-STATE101A

State Data Logger

가격: 215,680 원

VAT 10%: 21,568 원

총 금액: 237,248 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Accuracy:± 1 min/month

Accuracy Detail:±1 minute/month at 20°C, stand alone data logging

Battery life:up to 10 yr

Battery Size and Type:3.6V Li-ion

Baud Rate:115200

Data Interface:USB

Display Measuring Units:°C, °F, ft/min, k/h, kts, m/s, mph

Electrical Connection:Removable Screw Terminal

Height:1.4 in

Impedance Input:>60 kΩ

Internal Weak Pull-Up:<60 μA

LED Indicators:Green LED Blinks: 10 second rate to indicate logging; 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory

Length:0.6 in

Materials:ABS, Aluminum

Memory:406,323 readings; software configurable memory wrap

Memory Modes:Yes

Multi Start/Stop Mode Note:To Start the Device:Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging To Stop the Device:Press and hold the pushbutton for 5 seconds, the red LED will flash for 3 seconds and then the green LED will flash for two seconds. The device has stopped logging

Number of Measurements:1

Operating Temperature, Max:80 °C

Operating Temperature, Min:-40 °C

Protection:An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.

Real Time Recording:The device may be used with PC to monitor and record data in real-time

Relative Humidity:0 to 95% RH non-condensing

Resolution:4 Hz

Samples,Max:0.25 sec

Sampling Rate:4 Hz (4 updates/second)

Series ID:OM-CP-STATE101A-Logger

Software:XP SP3/Vista/7 and 8 (32 and 64-bit)

Start Modes:Delayed Start, Immediate Start, Push-button

Supply Power Type:Battery

Voltage Input Range:0 to 30 vdc

Weight:0.9 oz

Width:2.2 in
