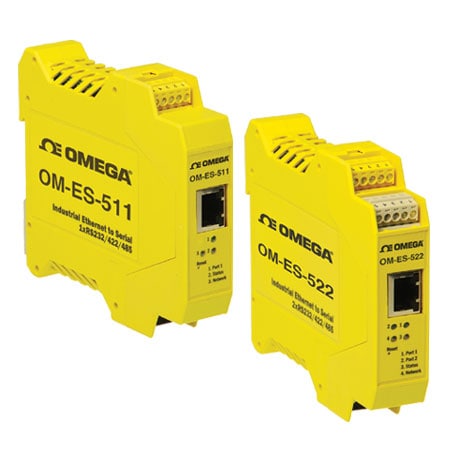

OM-ES-500-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Baud Rate	Cable Type	Configuration	Control Mode	Data Interface	Data Interface Note	Enclosure Ratings	Height	Input Cable Connector Type	Input Type	Length	Materials	Mounting	Number of Channels	Operating Temperature, Max	Operating Temperature, Min	Parity	Power Consumption	Power Consumption Note	Protocol	Relative Humidity	Software Support	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Weight	Width	Wire Gauge	Wire Length	수량 / 장바구니
OM-ES-5221,116,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	60 bps to 1,000,000	Normal/crossover auto-sensing (Auto-MDIX)	Web Interface	XON/XOFF Software handshake or RTS/CTS hardware handshake	RJ-45 / RS232 / RS422 / RS485	Ethernet 10 Base T/100 Base TX; Performance: Throughput guaranteed minimum of 95% of theroretical bi-direction full duplex band width at 1 MBaud	IP30, NEMA Type 1	4.5 in	RS232 / RS485: 5 - Pins Terminal Block, Removable	Ethernet	0.89 in	ABS	DIN-Rail Mounting	2	80 °C	-30 °C	Odd, Even, None, Mark, Space	2.9 W	1.4 watt 60 mA@24V typical–2.9 watt maximum	BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP	5 to 95% RH, Non-Condensing	Windows 2000, Windows XP, Windows Vista®, Windows 7, and Windows 8; Windows Server®	85 °C	-40 °C	Redundant DC dual power inputs, reverse polarity protected 5 to 30 Vdc	DC	5 to 30 Vdc	21 g	3.9 in	28 to 16 AWG	0.059 in
OM-ES-511955,280 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	60 bps to 1,000,000	Normal/crossover auto-sensing (Auto-MDIX)	Web Interface	XON/XOFF Software handshake or RTS/CTS hardware handshake	RJ-45 / RS232 / RS422 / RS485	Ethernet 10 Base T/100 Base TX; Performance: Throughput guaranteed minimum of 95% of theroretical bi-direction full duplex band width at 1 MBaud	IP30, NEMA Type 1	4.5 in	RS232 / RS485: 5 - Pins Terminal Block, Removable	Ethernet	0.89 in	ABS	DIN-Rail Mounting	1	80 °C	-30 °C	Odd, Even, None, Mark, Space	2.9 W	1.4 watt 60 mA@24V typical–2.9 watt maximum	BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP	5 to 95% RH, Non-Condensing	Windows 2000, Windows XP, Windows Vista®, Windows 7, and Windows 8; Windows Server®	85 °C	-40 °C	Redundant DC dual power inputs, reverse polarity protected 5 to 30 Vdc	DC	5 to 30 Vdc	21 g	3.9 in	28 to 16 AWG	0.059 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Baud Rate

Cable Type

Configuration

Control Mode

Data Interface

Data Interface Note

Enclosure Ratings

Height

Input Cable Connector Type

Input Type

Length

Materials

Mounting

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Parity

Power Consumption

Power Consumption Note

Protocol

Relative Humidity

Software Support

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Weight

Width

Wire Gauge

Wire Length

수량 / 장바구니

OM-ES-5221,116,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

60 bps to 1,000,000

Normal/crossover auto-sensing (Auto-MDIX)

Web Interface

XON/XOFF Software handshake or RTS/CTS hardware handshake

RJ-45 / RS232 / RS422 / RS485

Ethernet 10 Base T/100 Base TX; Performance: Throughput guaranteed minimum of 95% of theroretical bi-direction full duplex band width at 1 MBaud

IP30, NEMA Type 1

4.5 in

RS232 / RS485: 5 - Pins Terminal Block, Removable

Ethernet

0.89 in

ABS

DIN-Rail Mounting

80 °C

-30 °C

Odd, Even, None, Mark, Space

2.9 W

1.4 watt 60 mA@24V typical–2.9 watt maximum

BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP

5 to 95% RH, Non-Condensing

Windows 2000, Windows XP, Windows Vista®, Windows 7, and Windows 8; Windows Server®

85 °C

-40 °C

Redundant DC dual power inputs, reverse polarity protected 5 to 30 Vdc

5 to 30 Vdc

21 g

3.9 in

28 to 16 AWG

0.059 in

OM-ES-511955,280 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
