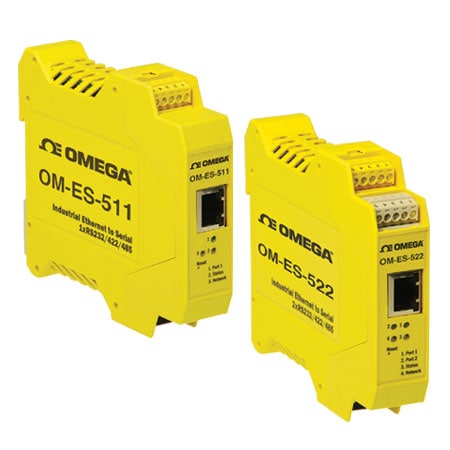

DwyerOmegaOM-ES-500-Series
OM-ES-522
- 가격
- 1,116,390 원
- VAT 10%
- 111,639 원
- 총 금액
- 1,228,029 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Baud Rate:60 bps to 1,000,000
Cable Type:Normal/crossover auto-sensing (Auto-MDIX)
Configuration:Web Interface
Control Mode:XON/XOFF Software handshake or RTS/CTS hardware handshake
Data Interface:RJ-45 / RS232 / RS422 / RS485
Data Interface Note:Ethernet 10 Base T/100 Base TX; Performance: Throughput guaranteed minimum of 95% of theroretical bi-direction full duplex band width at 1 MBaud
Enclosure Ratings:IP30, NEMA Type 1
Height:4.5 in
Input Cable Connector Type:RS232 / RS485: 5 - Pins Terminal Block, Removable
Input Type:Ethernet
Length:0.89 in
Materials:ABS
Mounting:DIN-Rail Mounting
Number of Channels:2
Operating Temperature, Max:80 °C
Operating Temperature, Min:-30 °C
Parity:Odd, Even, None, Mark, Space
Power Consumption:2.9 W
Power Consumption Note:1.4 watt 60 mA@24V typical–2.9 watt maximum
Protocol:BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP
Relative Humidity:5 to 95% RH, Non-Condensing
Software Support:Windows 2000, Windows XP, Windows Vista®, Windows 7, and Windows 8; Windows Server®
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:Redundant DC dual power inputs, reverse polarity protected 5 to 30 Vdc
Supply Power Type:DC
Supply Voltage:5 to 30 Vdc
Weight:21 g
Width:3.9 in
Wire Gauge:28 to 16 AWG
Wire Length:0.059 in
