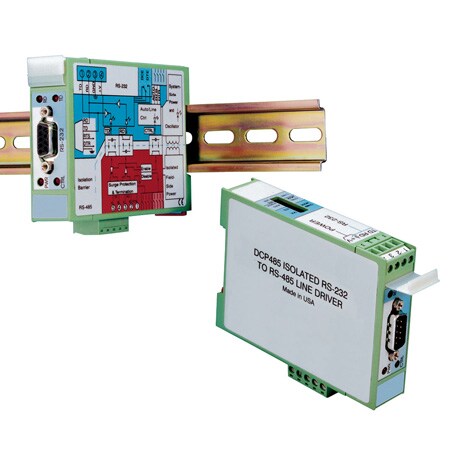

완전 절연 RS-232/RS-485 컨버터, 1.5 kV 절연
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 2개의 상품
| 제품 번호 / 가격 | Brand | Altitude | Baud Rate | Capacitance | Capturing Mode | Channels | Controller Options | Current Output | Data Interface | Height | Impedance Input | Input Cable Connector Type | Input Type | Isolation | Length | MTBF | Mounting | Multidrop Units, Max | Null Modern Switch Note | Number of Channels | Operating Temperature, Max | Operating Temperature, Min | Output Cable Connector Type | Protection | Relative Humidity | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | Supply Voltage | Switch Note | Switch Type | Transmission Distance | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DCP-485-S729,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 15000 ft | 115.2 K, 57.6 K, 38.4 K, 19.2 K, 9.6 K, 4.8 K, 0 to 2.4 K | 25 pF per foot | Asynchronous 4–wire duplex, 2–wire half duplex, 2–wire simplex | (1) TD, RD | (1) RTS, DTR | 28 mA max/output | RS232 DB 9-Pin Connector Female, RS 485 | 4.3 in | 12 kΩ min/input | RS232: 9 - Pin Female D-Sub | RS232 | Surge: 6000 Vdc, 1 min, Continuous: 1500 Vrms | 0.89 in | (2) >100,000 hrs | DIN-Rail Mounting | 32 | 1 (Reverses RS232 pins 2 and 3) | 1 | 60 °C | 0 °C | RS485: Pluggable solderless screw terminals | Mode Surge Protection: (dc input and RS232 inputs and outputs, RS485 inputs and outputs) | 0 to 95% RH, Non-Condensing | 70 °C | 0 °C | DC | 10 to 30 Vdc | TD Term - switches a 120 Ω termination resistor across the RS485 transmit data lines TD A & TD B. RD Pull Up/Term/Pull Dn - RD Term switches a 120 Ω termination resistor across the RS485 receive data lines. RD Pull Up & RD Pull Dn switch a pull up resistor to RD B’ and a pull down resistor to RD A’, respectively. TD Cont En/Ctrl’d - select continuous enable or RS232 side signal control of the RS485 transmitter. RD Cont En/Ctrl’d - select continuous enable or RS232 side signal control of the RS485 receiver. | TD Term, RD Pull Up/Term/Pull Dn, TD Cont En/Ctrl’d | 1.3 km, 1.5 km, 1.6 km, 4.2 km, 5.6 km, 6.4 km, 11.3 km | 130 g | 3.3 in | |
DCP-485-P729,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 15000 ft | 115.2 K, 57.6 K, 38.4 K, 19.2 K, 9.6 K, 4.8 K, 0 to 2.4 K | 25 pF per foot | Asynchronous 4–wire duplex, 2–wire half duplex, 2–wire simplex | (1) TD, RD | (1) RTS, DTR | 28 mA max/output | RS232 DB 9-Pin Connector Male, RS485 | 4.3 in | 12 kΩ min/input | RS232: 9 - Pin Male D-Sub | RS232 | Surge: 6000 Vdc, 1 min, Continuous: 1500 Vrms | 0.89 in | (2) >100,000 hrs | DIN-Rail Mounting | 32 | 1 (Reverses RS232 pins 2 and 3) | 1 | 60 °C | 0 °C | RS485: Pluggable solderless screw terminals | Mode Surge Protection: (dc input and RS232 inputs and outputs, RS485 inputs and outputs) | 0 to 95% RH, Non-Condensing | 70 °C | 0 °C | DC | 10 to 30 Vdc | TD Term - switches a 120 Ω termination resistor across the RS485 transmit data lines TD A & TD B. RD Pull Up/Term/Pull Dn - RD Term switches a 120 Ω termination resistor across the RS485 receive data lines. RD Pull Up & RD Pull Dn switch a pull up resistor to RD B’ and a pull down resistor to RD A’, respectively. TD Cont En/Ctrl’d - select continuous enable or RS232 side signal control of the RS485 transmitter. RD Cont En/Ctrl’d - select continuous enable or RS232 side signal control of the RS485 receiver. | TD Term, RD Pull Up/Term/Pull Dn, TD Cont En/Ctrl’d | 1.3 km, 1.5 km, 1.6 km, 4.2 km, 5.6 km, 6.4 km, 11.3 km | 130 g | 3.3 in |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
