DwyerOmegaDCP-485
DCP-485-S

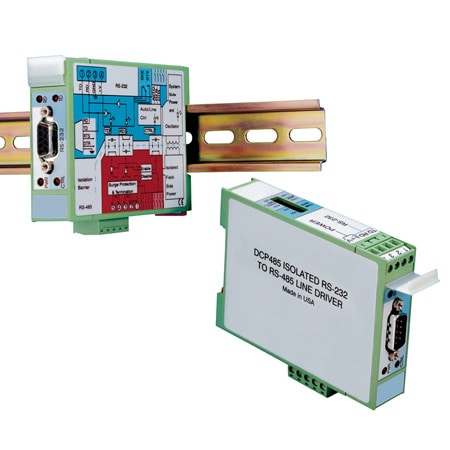

Fully Isolated RS-232/RS-485 Converters
- 가격
- 729,900 원
- VAT 10%
- 72,990 원
- 총 금액
- 802,890 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Altitude:15000 ft
Baud Rate:115.2 K, 57.6 K, 38.4 K, 19.2 K, 9.6 K, 4.8 K, 0 to 2.4 K
Capacitance:25 pF per foot
Capturing Mode:Asynchronous 4–wire duplex, 2–wire half duplex, 2–wire simplex
Channels:(1) TD, RD
Controller Options:(1) RTS, DTR
Current Output:28 mA max/output
Data Interface:RS232 DB 9-Pin Connector Female, RS 485
Height:4.3 in
Impedance Input:12 kΩ min/input
Input Cable Connector Type:RS232: 9 - Pin Female D-Sub
Input Type:RS232
Isolation:Surge: 6000 Vdc, 1 min, Continuous: 1500 Vrms
Length:0.89 in
MTBF:(2) >100,000 hrs
Mounting:DIN-Rail Mounting
Multidrop Units, Max:32
Null Modern Switch Note:1 (Reverses RS232 pins 2 and 3)
Number of Channels:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:0 °C
Output Cable Connector Type:RS485: Pluggable solderless screw terminals
Protection:Mode Surge Protection: (dc input and RS232 inputs and outputs, RS485 inputs and outputs)
Relative Humidity:0 to 95% RH, Non-Condensing
Storage Temperature, Max:70 °C
Storage Temperature, Min:0 °C
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Switch Note:TD Term - switches a 120 Ω termination resistor across the RS485 transmit data lines TD A & TD B. RD Pull Up/Term/Pull Dn - RD Term switches a 120 Ω termination resistor across the RS485 receive data lines. RD Pull Up & RD Pull Dn switch a pull up resistor to RD B’ and a pull down resistor to RD A’, respectively. TD Cont En/Ctrl’d - select continuous enable or RS232 side signal control of the RS485 transmitter. RD Cont En/Ctrl’d - select continuous enable or RS232 side signal control of the RS485 receiver.
Switch Type:TD Term, RD Pull Up/Term/Pull Dn, TD Cont En/Ctrl’d
Transmission Distance:1.3 km, 1.5 km, 1.6 km, 4.2 km, 5.6 km, 6.4 km, 11.3 km
Weight:130 g
Width:3.3 in
