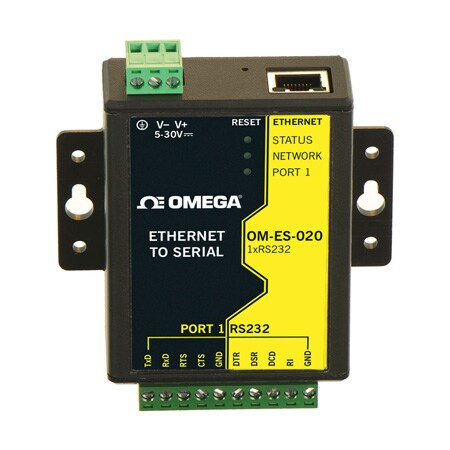

OM-ES-020-series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Baud Rate	Cable Type	Configuration	Control Mode	Data Interface	Data Interface Note	Enclosure Ratings	Height	Input Cable Connector Type	Input Type	Length	Mounting	Number of Channels	Operating Temperature, Max	Operating Temperature, Min	Parity	Power Consumption	Protocol	Relative Humidity	Software Support	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Width	수량 / 장바구니
OM-ES-020592,170 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	110 to 1,000,000	Normal/crossover auto-sensing (Auto-MDIX)	Web Interface	RTS/CTS, DSR/DTR, XON/XOFF	RJ-45, RS232	Ethernet 10 Base T/100 Base TX	IP30, NEMA Type 1	3.61 in	RS232 / RS485: 10 - Pins Terminal Block, Removable	Ethernet	1.1 in	DIN Rail or Wall Mount	1	55 °C	0 °C	Odd, Even, None, Mark, Space	0.76 W	BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP	5 to 95% RH, Non-Condensing	Windows 2000, Windows Server 2008 (32 and 64-bit), Windows XP/Vista/7 and 8 (32 and 64-bit)/Fully RFC2217 compliant/ interface for other OS’s and Linux	85 °C	-20 °C	5 to 30 Vdc input, reverse polarity protected	DC	5 to 30 Vdc	2.6 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Baud Rate

Cable Type

Configuration

Control Mode

Data Interface

Data Interface Note

Enclosure Ratings

Height

Input Cable Connector Type

Input Type

Length

Mounting

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Parity

Power Consumption

Protocol

Relative Humidity

Software Support

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Width

수량 / 장바구니

OM-ES-020592,170 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

110 to 1,000,000

Normal/crossover auto-sensing (Auto-MDIX)

Web Interface

RTS/CTS, DSR/DTR, XON/XOFF

RJ-45, RS232

Ethernet 10 Base T/100 Base TX

IP30, NEMA Type 1

3.61 in

RS232 / RS485: 10 - Pins Terminal Block, Removable

Ethernet

1.1 in

DIN Rail or Wall Mount

55 °C

0 °C

Odd, Even, None, Mark, Space

0.76 W

BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP

5 to 95% RH, Non-Condensing

Windows 2000, Windows Server 2008 (32 and 64-bit), Windows XP/Vista/7 and 8 (32 and 64-bit)/Fully RFC2217 compliant/ interface for other OS’s and Linux

85 °C

-20 °C

5 to 30 Vdc input, reverse polarity protected

5 to 30 Vdc

2.6 in
