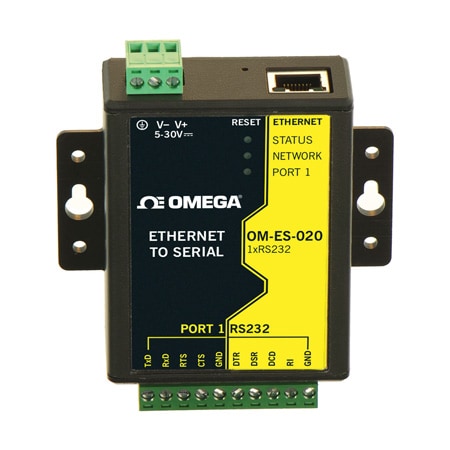

DwyerOmegaOM-ES-020-series
OM-ES-020
Ethernet to Serial Device Server
- 가격
- 592,170 원
- VAT 10%
- 59,217 원
- 총 금액
- 651,387 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Baud Rate:110 to 1,000,000
Cable Type:Normal/crossover auto-sensing (Auto-MDIX)
Configuration:Web Interface
Control Mode:RTS/CTS, DSR/DTR, XON/XOFF
Data Interface:RJ-45, RS232
Data Interface Note:Ethernet 10 Base T/100 Base TX
Enclosure Ratings:IP30, NEMA Type 1
Height:3.61 in
Input Cable Connector Type:RS232 / RS485: 10 - Pins Terminal Block, Removable
Input Type:Ethernet
Length:1.1 in
Mounting:DIN Rail or Wall Mount
Number of Channels:1
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Parity:Odd, Even, None, Mark, Space
Power Consumption:0.76 W
Protocol:BOOTP, DHCP, HTTP, ICMP, IP, RFC2218, TCP, Telnet, UDP
Relative Humidity:5 to 95% RH, Non-Condensing
Software Support:Windows 2000, Windows Server 2008 (32 and 64-bit), Windows XP/Vista/7 and 8 (32 and 64-bit)/Fully RFC2217 compliant/ interface for other OS’s and Linux
Storage Temperature, Max:85 °C
Storage Temperature, Min:-20 °C
Supply Power Note:5 to 30 Vdc input, reverse polarity protected
Supply Power Type:DC
Supply Voltage:5 to 30 Vdc
Width:2.6 in
