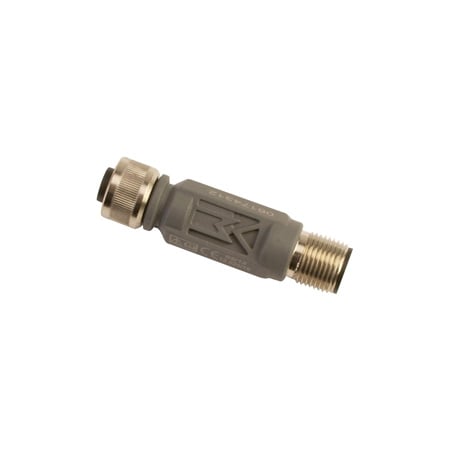

M12TX-PT100-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Accuracy	Accuracy Detail	Approvals	Diameter	Electrical Connection	Electrical Output	EMC	Enclosure Ratings	Factory Setting	Input Configuration	Input Electrical Connection	Input Noise	Input Range	Isolation	Load Resistance	Materials	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Protection	Relative Humidity	Response Time	Response Time Note	Sensor Break Detection	Sensor Error Compensation Note	Sensor Type	Series ID	Span, Min	Span Note	Supply Power	Supply Power Type	Temperature Coefficient	Temperature Influence, Max	Zero Setting Adjustable Range	수량 / 장바구니
M12TX-PT100가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751	Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751	CE	15 mm	M12 4 pin Male	4 to 20 mA	In accordance to EN 61326	IP65, IP67	0 to 150°C	M12TX-CONFIG-SET configuration kit (PC with OS Windows® required)	M12 4 pin Female	0 to 1.5 Hz: 1.4 µVRMS (RTI)	-50 to 500 °C	Non-isolated	700Ω @ 24Vdc, [RLo= (Vsupply-8,5)/0,020]	Thermoplastic	80 °C	-40 °C	Current	Supply Protection: polarity protected	0 to 100%	<50 ms	<50 ms @ 90%	Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action;Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action	Over 2 points (maximum 1% of span)	100 Ω RTD	M12TX-PT100-Series	50°C	50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)]	8.5 to 32 Vdc	DC	α = 0.00385/°C	± 0.3°C/25°C or ± 0.3% of span/25°C	-50 to 50°C

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Accuracy

Accuracy Detail

Approvals

Diameter

Electrical Connection

Electrical Output

EMC

Enclosure Ratings

Factory Setting

Input Configuration

Input Electrical Connection

Input Noise

Input Range

Isolation

Load Resistance

Materials

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Protection

Relative Humidity

Response Time

Response Time Note

Sensor Break Detection

Sensor Error Compensation Note

Sensor Type

Series ID

Span, Min

Span Note

Supply Power

Supply Power Type

Temperature Coefficient

Temperature Influence, Max

Zero Setting Adjustable Range

수량 / 장바구니

M12TX-PT100가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751

15 mm

M12 4 pin Male

4 to 20 mA

In accordance to EN 61326

IP65, IP67

0 to 150°C

M12TX-CONFIG-SET configuration kit (PC with OS Windows® required)

M12 4 pin Female

0 to 1.5 Hz: 1.4 µVRMS (RTI)

-50 to 500 °C

Non-isolated

700Ω @ 24Vdc, [RLo= (Vsupply-8,5)/0,020]

Thermoplastic

80 °C

-40 °C

Current

Supply Protection: polarity protected

0 to 100%

<50 ms

<50 ms @ 90%

Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action;Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action

Over 2 points (maximum 1% of span)

100 Ω RTD

M12TX-PT100-Series

50°C

50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)]

8.5 to 32 Vdc

α = 0.00385/°C

± 0.3°C/25°C or ± 0.3% of span/25°C

-50 to 50°C
