DwyerOmegaM12TX-PT100-Series

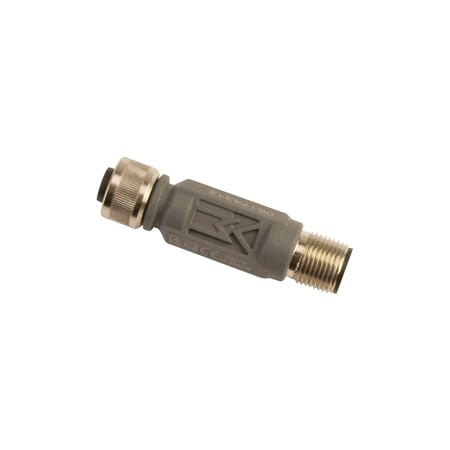

M12TX-PT100
Inline RTD Temperature Transmitter for 100Ω PT RTDs
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 17 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751
Accuracy Detail:Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751
Approvals:CE
Diameter:15 mm
Electrical Connection:M12 4 pin Male
Electrical Output:4 to 20 mA
EMC:In accordance to EN 61326
Enclosure Ratings:IP65, IP67
Factory Setting:0 to 150°C
Input Configuration:M12TX-CONFIG-SET configuration kit (PC with OS Windows® required)
Input Electrical Connection:M12 4 pin Female
Input Noise:0 to 1.5 Hz: 1.4 µVRMS (RTI)
Input Range:-50 to 500 °C
Isolation:Non-isolated
Load Resistance:700Ω @ 24Vdc, [RLo= (Vsupply-8,5)/0,020]
Materials:Thermoplastic
Operating Temperature, Max:80 °C
Operating Temperature, Min:-40 °C
Output Signal:Current
Protection:Supply Protection: polarity protected
Relative Humidity:0 to 100%
Response Time:<50 ms
Response Time Note:<50 ms @ 90%
Sensor Break Detection:Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action;Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action
Sensor Error Compensation Note:Over 2 points (maximum 1% of span)
Sensor Type:100 Ω RTD
Series ID:M12TX-PT100-Series
Span, Min:50°C
Span Note:50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)]
Supply Power:8.5 to 32 Vdc
Supply Power Type:DC
Temperature Coefficient:α = 0.00385/°C
Temperature Influence, Max:± 0.3°C/25°C or ± 0.3% of span/25°C
Zero Setting Adjustable Range:-50 to 50°C
