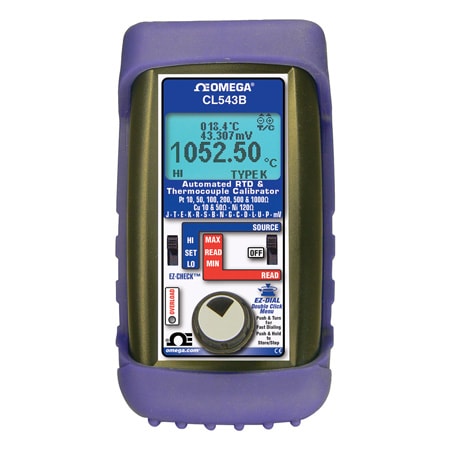

CL543B-series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Alerts	Battery life	Cold Junction Sensor	Display Type	Display Type Note	Height	Length	Operating Temperature, Max	Operating Temperature, Min	Over-Voltage Protection	RTD and OHMS Read	RTD and OHMS Source	Relative Humidity Note	Relative Humidity, Max	Relative Humidity, Min	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Temperature Effect	Thermocouple Type	Voltage Read	Voltage Source	Weight	Weight Note	Width	수량 / 장바구니
CL543B3,707,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Read and Source Signals	Red LED displays OVERLOAD or out of range conditions	50 hr, low battery warning with less than 1 hr operation left	≤± 0.01% °/ ° from ambient temperature ( °C or °F)	LCD	High contrast graphic Liquid Crystal Display. LED backlighting for use in low lit areas.	41 mm	143 mm	60 °C	-20 °C	Up to 60 vrms (rated for 30 seconds), protection against misconnection	Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 Accuracy: ± (0.015% of reading + 0.05Ω) Excitation Current: 0.9 mA to 401Ω, 0.4 mA to 4010Ω (nominal)	3- and 4-Wire Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of setting + 0.05Ω) Below 1 mA of External Excitation Current: Add (0.025 mV/mA excitation current) 2-Wire Accuracy: Add 0.1Ω to 3-wire and 4-wire accuracy Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 RMS Noise: 400Ω Range: ≤± 0.005Ω from 0.1 to 10 Hz 4000Ω Range: ≤± 0.05Ω from 0.1 to 10 Hz Allowable Excitation Current Range: 400Ω Range: 10.2 mA max; steady or pulsed/intermittent 4000Ω Range: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width, 0.025 mV, mA excitation current	10% ≤RH ≤90% (0 to 35°C),non-condensing; 10% ≤RH ≤70% (35 to 60°C),non-condensing	0.9	10%	60 °C	-30 °C	6 Vdc	≤± 25 ppm/°C	J, K, T, E, R, S, B, C, N, L, G, U, D	Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of reading + 0.006 mV) Input resistance: ≥10 MΩ Normal Mode Rejection: 50/60 Hz,50 dB Common Mode Rejection: 50/60 Hz,120 dB	Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of setting + 0.006 mV) Source Current: ≥10 mA Output Impedance: <0.3Ω RMS Noise: ≤± 0.0005 mV from 0.1 to 10 Hz Short Circuit Duration: Infinite	0.34 kg	0.34 kg (12.1 oz) with boot and batteries	76 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Alerts

Battery life

Cold Junction Sensor

Display Type

Display Type Note

Height

Length

Operating Temperature, Max

Operating Temperature, Min

Over-Voltage Protection

RTD and OHMS Read

RTD and OHMS Source

Relative Humidity Note

Relative Humidity, Max

Relative Humidity, Min

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Temperature Effect

Thermocouple Type

Voltage Read

Voltage Source

Weight

Weight Note

Width

수량 / 장바구니

CL543B3,707,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Read and Source Signals

Red LED displays OVERLOAD or out of range conditions

50 hr, low battery warning with less than 1 hr operation left

≤± 0.01% °/ ° from ambient temperature ( °C or °F)

LCD

High contrast graphic Liquid Crystal Display. LED backlighting for use in low lit areas.

41 mm

143 mm

60 °C

-20 °C

Up to 60 vrms (rated for 30 seconds), protection against misconnection

Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 Accuracy: ± (0.015% of reading + 0.05Ω) Excitation Current: 0.9 mA to 401Ω, 0.4 mA to 4010Ω (nominal)

3- and 4-Wire Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of setting + 0.05Ω) Below 1 mA of External Excitation Current: Add (0.025 mV/mA excitation current) 2-Wire Accuracy: Add 0.1Ω to 3-wire and 4-wire accuracy Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 RMS Noise: 400Ω Range: ≤± 0.005Ω from 0.1 to 10 Hz 4000Ω Range: ≤± 0.05Ω from 0.1 to 10 Hz Allowable Excitation Current Range: 400Ω Range: 10.2 mA max; steady or pulsed/intermittent 4000Ω Range: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width, 0.025 mV, mA excitation current

10% ≤RH ≤90% (0 to 35°C),non-condensing; 10% ≤RH ≤70% (35 to 60°C),non-condensing

0.9

10%

60 °C

-30 °C

6 Vdc

≤± 25 ppm/°C

J, K, T, E, R, S, B, C, N, L, G, U, D

Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of reading + 0.006 mV) Input resistance: ≥10 MΩ Normal Mode Rejection: 50/60 Hz,50 dB Common Mode Rejection: 50/60 Hz,120 dB

Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of setting + 0.006 mV) Source Current: ≥10 mA Output Impedance: <0.3Ω RMS Noise: ≤± 0.0005 mV from 0.1 to 10 Hz Short Circuit Duration: Infinite

0.34 kg

0.34 kg (12.1 oz) with boot and batteries

76 mm
