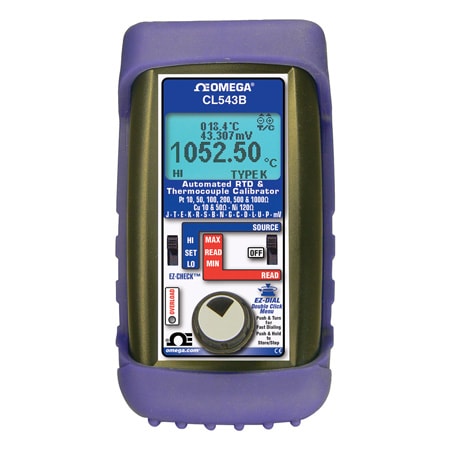

DwyerOmegaCL543B-series

CL543B

RTD & T/C CALIBRATOR

가격: 3,707,210 원

VAT 10%: 370,721 원

총 금액: 4,077,931 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Read and Source Signals

Alerts:Red LED displays OVERLOAD or out of range conditions

Battery life:50 hr, low battery warning with less than 1 hr operation left

Cold Junction Sensor:≤± 0.01% °/ ° from ambient temperature ( °C or °F)

Display Type:LCD

Display Type Note:High contrast graphic Liquid Crystal Display. LED backlighting for use in low lit areas.

Height:41 mm

Length:143 mm

Operating Temperature, Max:60 °C

Operating Temperature, Min:-20 °C

Over-Voltage Protection:Up to 60 vrms (rated for 30 seconds), protection against misconnection

RTD and OHMS Read:Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 Accuracy: ± (0.015% of reading + 0.05Ω) Excitation Current: 0.9 mA to 401Ω, 0.4 mA to 4010Ω (nominal)

RTD and OHMS Source:3- and 4-Wire Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of setting + 0.05Ω) Below 1 mA of External Excitation Current: Add (0.025 mV/mA excitation current) 2-Wire Accuracy: Add 0.1Ω to 3-wire and 4-wire accuracy Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 RMS Noise: 400Ω Range: ≤± 0.005Ω from 0.1 to 10 Hz 4000Ω Range: ≤± 0.05Ω from 0.1 to 10 Hz Allowable Excitation Current Range: 400Ω Range: 10.2 mA max; steady or pulsed/intermittent 4000Ω Range: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width, 0.025 mV, mA excitation current

Relative Humidity Note:10% ≤RH ≤90% (0 to 35°C),non-condensing; 10% ≤RH ≤70% (35 to 60°C),non-condensing

Relative Humidity, Max:0.9

Relative Humidity, Min:10%

Storage Temperature, Max:60 °C

Storage Temperature, Min:-30 °C

Supply Voltage:6 Vdc

Temperature Effect:≤± 25 ppm/°C

Thermocouple Type:J, K, T, E, R, S, B, C, N, L, G, U, D

Voltage Read:Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of reading + 0.006 mV) Input resistance: ≥10 MΩ Normal Mode Rejection: 50/60 Hz,50 dB Common Mode Rejection: 50/60 Hz,120 dB

Voltage Source:Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of setting + 0.006 mV) Source Current: ≥10 mA Output Impedance: <0.3Ω RMS Noise: ≤± 0.0005 mV from 0.1 to 10 Hz Short Circuit Duration: Infinite

Weight:0.34 kg

Weight Note:0.34 kg (12.1 oz) with boot and batteries

Width:76 mm
