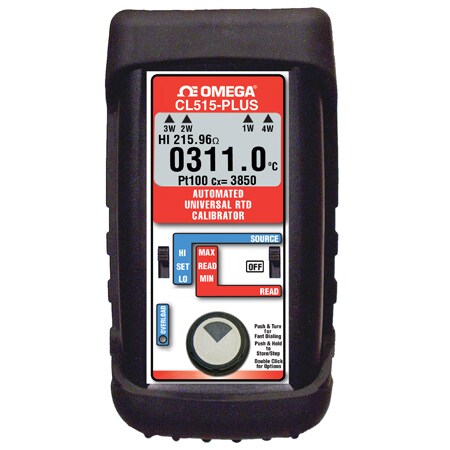

CL515-PLUS-series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Battery life	Display Type	Display Type Note	Height	Length	Operating Temperature Note	Operating Temperature, Max	Operating Temperature, Min	Relative Humidity Note	Relative Humidity, Max	Relative Humidity, Min	Supply Voltage	Temperature Drift	Temperature Drift Note	Thermocouple Type	Type of RTD Signal	Voltage Read	Voltage Source	Weight	Weight Note	Width	수량 / 장바구니
CL515-PLUS3,764,460 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.015 %	± (0.015% of reading + 0.05 Ω)	Source Only	50 hr	LCD	High contrast graphic liquid crystal display, LED backlighting for use in low lit areas	41 mm	143 mm	Nominal Temperature: 23°C	60 °C	-25 °C	10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%	0.9	10%	6 Vdc	± 0.01%	± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F)	None	100 Ω	Excitation: Current 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB	Accuracy: From 1 to 10.2 mA external excitation Current ± (0.015% of Reading + 0.05 Ω) Below: 1 mA of external excitation Current: ± (0.015% of reading + 0.025 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range <41Ω: 10.2 mA maximum; steady or pulsed/intermittent 410 to 4001Ω: 1 mA maximum; steady or pulsed/intermittent Pulsed Excitation: Current compatibility DC to 0.01 second pulse width 0.025 mV	0.34 kg	0.34 kg (12.1 oz) including boot and batteries	76 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Battery life

Display Type

Display Type Note

Height

Length

Operating Temperature Note

Operating Temperature, Max

Operating Temperature, Min

Relative Humidity Note

Relative Humidity, Max

Relative Humidity, Min

Supply Voltage

Temperature Drift

Temperature Drift Note

Thermocouple Type

Type of RTD Signal

Voltage Read

Voltage Source

Weight

Weight Note

Width

수량 / 장바구니

CL515-PLUS3,764,460 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.015 %

± (0.015% of reading + 0.05 Ω)

Source Only

50 hr

LCD

High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

41 mm

143 mm

Nominal Temperature: 23°C

60 °C

-25 °C

10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%

0.9

10%

6 Vdc

± 0.01%

± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F)

None

100 Ω

Excitation: Current 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB

Accuracy: From 1 to 10.2 mA external excitation Current ± (0.015% of Reading + 0.05 Ω) Below: 1 mA of external excitation Current: ± (0.015% of reading + 0.025 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range <41Ω: 10.2 mA maximum; steady or pulsed/intermittent 410 to 4001Ω: 1 mA maximum; steady or pulsed/intermittent Pulsed Excitation: Current compatibility DC to 0.01 second pulse width 0.025 mV

0.34 kg

0.34 kg (12.1 oz) including boot and batteries

76 mm
