DwyerOmegaCL515-PLUS-series
CL515-PLUS

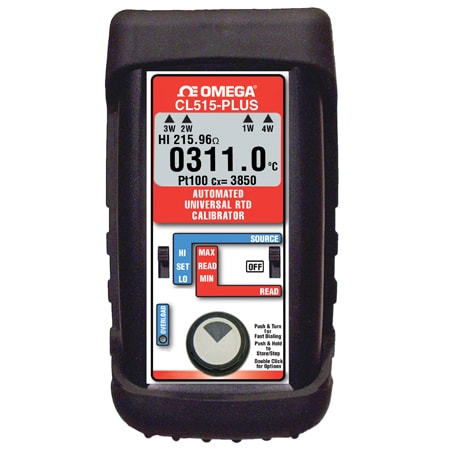

Universal RTD Calibrator
- 가격
- 3,764,460 원
- VAT 10%
- 376,446 원
- 총 금액
- 4,140,906 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.015 %
Accuracy Detail:± (0.015% of reading + 0.05 Ω)
Additional Features 1:Source Only
Battery life:50 hr
Display Type:LCD
Display Type Note:High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Height:41 mm
Length:143 mm
Operating Temperature Note:Nominal Temperature: 23°C
Operating Temperature, Max:60 °C
Operating Temperature, Min:-25 °C
Relative Humidity Note:10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%
Relative Humidity, Max:0.9
Relative Humidity, Min:10%
Supply Voltage:6 Vdc
Temperature Drift:± 0.01%
Temperature Drift Note:± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F)
Thermocouple Type:None
Type of RTD Signal:100 Ω
Voltage Read:Excitation: Current 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB
Voltage Source:Accuracy: From 1 to 10.2 mA external excitation Current ± (0.015% of Reading + 0.05 Ω) Below: 1 mA of external excitation Current: ± (0.015% of reading + 0.025 mV/mA excitation current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 4001.0 Ω Allowable Excitation Current Range <41Ω: 10.2 mA maximum; steady or pulsed/intermittent 410 to 4001Ω: 1 mA maximum; steady or pulsed/intermittent Pulsed Excitation: Current compatibility DC to 0.01 second pulse width 0.025 mV
Weight:0.34 kg
Weight Note:0.34 kg (12.1 oz) including boot and batteries
Width:76 mm
