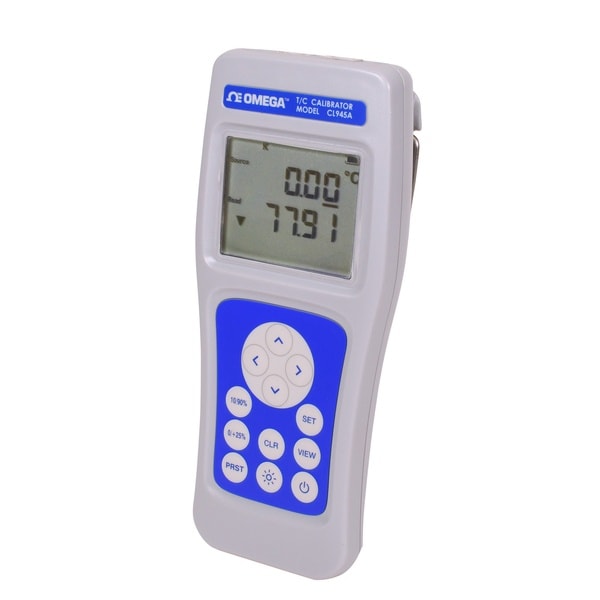

500시간 열전대 교정기, 0.01° 해상도
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 2개의 상품
| 제품 번호 / 가격 | Brand | Additional Features 1 | Auto Off | Auto Off Note | Battery Indication | Battery life | Cold Junction Error | Common Mode Voltage | Common Mode Voltage (CJC error), Max | Common Mode Voltage Note | Compliance | Dimensions (CJC error) | Display Backlight | Display Measuring Units | Display Resolution | Display Resolution (CJC error) | Display Type | Display Type Note | EMC Standard | ESD Standard | Electrical Connection | Electrical Safety | Height | Input Current | Internal Preset Storage | Keypad | Length | Low Resistance Load | Millivolt Range | Operating Environment | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Power Cycle Configuration Retention | Probe Offset Uncertainty | Reading Rate | Reading Rate Note | Relative Humidity Note | Relative Humidity, Max | Relative Humidity, Min | Resolution Note | Resolution, Max | Resolution, Min | Sanitation | Statistics | Storage Temperature Note | Storage Temperature, Max | Storage Temperature, Min | Supply Voltage | Temperature Coefficient | Thermocouple Type | Weight | Weight (CJC error) | Weight Note | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CL945A가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Read and Source Signals | 20 min | 20 minute no key pressed Auto Off. Feature can be disabled | 4 stage battery charge indication | 500 hr | ± 0.15 °C | 42 V | 1 V | 42 V peak to earth; 1 V p-p between T1 and T2 | CE, Mil-PRF-28800F Class 2, REACH, RoHS 2 | 7.6 L x 3.3 W x 1.1 H in | Four (4) LED Backlight with 30-second timeout | °C, °F, mV | 0.01° | 0.1° | Backlit LCD | 5-DIGIT AUTO-RESOLUTION (0.1/0.01) WITH BACKLIGHT AND FUNCTION ANNUNCIATORS Two (2) rows of Five (5) digit LCD with separate minus sign, decimal indicators, with offset, thermocouple types KJTEBNRSGCDPLU, battery, source, read, temperature units, voltage units, percent, trend, PRST (0-19), MIN, MAX, AVG, RNG, STDEV, Transfer, symbols: Fast Ramp, Slow Ramp, Step, Bluetooth | Class 2, EN 61326, MIL-PRF-28800F | IEC 61326 Criterion B | Miniature Female Thermocouple Connector | IEC-61010 | 28 mm | ± 50 nA | 20 user defined presets available | 12 Switches | 193 mm | Less than 5µV change in output with a 100KΩ resistance | -15 to 85 mV | Altitude: 0 to 4600 m ; 0 to 15,092 ft(CJC Error) Vibration: Random 10 – 500 Hz; 0.03 g2/Hz(CJC Error) Shock: 30g Half Sine Drop: 4 Drops from 1 m to Concrete | Operating Temperature(CJC error): -4 to 131°F | 55 °C | -20 °C | Instrument retains: Sensor Type, Temperature Unit Offset Values, Presets, Statistics, Open Lead detection status, 0%/100% span settings, and operating mode | Resolution 0.1 °C/°F | 3/sec | 3/sec. for Readings and TREND indicators | <10 °C (50 °F): Non-condensing 10 to 30 °C (50 to 86 °F): 5 to 95% RH 30 to 40 °C (86 to 104 °F): 5 to 85% RH 40°C to 55°C (104 to 131 °F): 5 to 60% RH | 0.95 | 5% | 0.01°C UP TO 999.99°C AND 0.1°C ≥ 1000°C | 999.99 °C | 0.01 °C | NSF, ANSI/3-1 14159-2 | Average, Maximum, Minimum, Range, Standard Deviation | Storage Temperature(CJC error): -59.8 to 159.8°F | 71 °C | -51 °C | 4.5 Vdc | For specification variances due to ambient operating temperature, see the Expanded Instrument Uncertainty charts in Appendix B of this manual. For ambient operating temperatures not shown in Appendix B, accuracies shall be interpolated linearly. | J, K, T, E, R, S, B, C, N, L, G, U, D, P | 362.9 g | 12.8 oz (including batteries) | 362.9g (including batteries) | 84 mm | |
CL940A가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Read and Source Signals | 20 min | 20 minute no key pressed Auto Off. Feature can be disabled | 4 stage battery charge indication | 500 hr | ± 0.15 °C | 42 V | 1 V | 42 V peak to earth; 1 V p-p between T1 and T2 | CE, Mil-PRF-28800F Class 2, REACH, RoHS 2 | 7.6 L x 3.3 W x 1.1 H in | Four (4) LED Backlight with 30-second timeout | °C, °F, mV | 0.01° | 0.1° | Backlit LCD | 5-DIGIT AUTO-RESOLUTION (0.1/0.01) WITH BACKLIGHT AND FUNCTION ANNUNCIATORS Two (2) rows of Five (5) digit LCD with separate minus sign, decimal indicators, with offset, thermocouple types KJTEBNRSGCDPLU, battery, source, read, temperature units, voltage units, percent, trend, PRST (0-19), MIN, MAX, AVG, RNG, STDEV, Transfer, symbols: Fast Ramp, Slow Ramp, Step, Bluetooth | Class 2, EN 61326, MIL-PRF-28800F | IEC 61326 Criterion B | Miniature Female Thermocouple Connector | IEC-61010 | 28 mm | ± 50 nA | 20 user defined presets available | 12 Switches | 193 mm | Less than 5µV change in output with a 100KΩ resistance | -15 to 85 mV | Altitude: 0 to 4600 m ; 0 to 15,092 ft(CJC Error) Vibration: Random 10 – 500 Hz; 0.03 g2/Hz(CJC Error) Shock: 30g Half Sine Drop: 4 Drops from 1 m to Concrete | Operating Temperature(CJC error): -4 to 131°F | 55 °C | -20 °C | Instrument retains: Sensor Type, Temperature Unit Offset Values, Presets, Statistics, Open Lead detection status, 0%/100% span settings, and operating mode | Resolution 0.1 °C/°F | 3/sec | 3/sec. for Readings and TREND indicators | <10 °C (50 °F): Non-condensing 10 to 30 °C (50 to 86 °F): 5 to 95% RH 30 to 40 °C (86 to 104 °F): 5 to 85% RH 40°C to 55°C (104 to 131 °F): 5 to 60% RH | 0.95 | 5% | 0.01°C UP TO 999.99°C AND 0.1°C ≥ 1000°C | 999.99 °C | 0.01 °C | NSF, ANSI/3-1 14159-2 | Average, Maximum, Minimum, Range, Standard Deviation | Storage Temperature(CJC error): -59.8 to 159.8°F | 71 °C | -51 °C | 4.5 Vdc | For specification variances due to ambient operating temperature, see the Expanded Instrument Uncertainty charts in Appendix B of this manual. For ambient operating temperatures not shown in Appendix B, accuracies shall be interpolated linearly. | J, K, T, E | 362.9 g | 12.8 oz (including batteries) | 362.9g (including batteries) | 84 mm |
