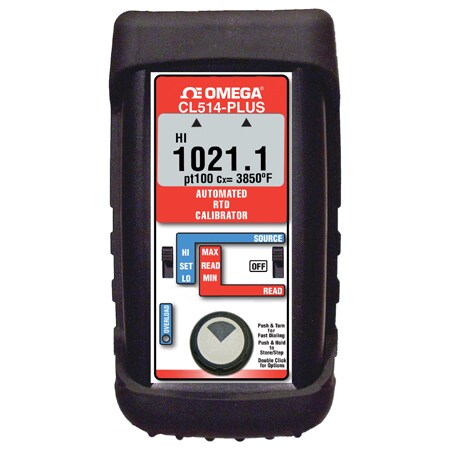

CL514-PLUS-series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Battery Indication	Battery life	Display Type	Display Type Note	Height	Length	Operating Temperature Note	Operating Temperature, Max	Operating Temperature, Min	Protection	Relative Humidity Note	Relative Humidity, Max	Relative Humidity, Min	Supply Voltage	Temperature Drift	Temperature Drift Note	Thermocouple Type	Type of RTD Signal	Voltage Read	Voltage Source	Weight	Weight Note	Width	수량 / 장바구니
CL514-PLUS2,607,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.025 %	± (0.025% of reading + 0.05 Ω)	Read & Source Signals	A low battery indication is displayed when the battery voltage drops below the operating level	50 hr	LCD	High contrast graphic liquid crystal display, LED backlighting for use in low lit areas	40.64 mm	143 mm	Nominal Temperature: 23°C	60 °C	-25 °C	Over-voltage protection to 60 V dc (rated for 30 seconds) (Protection against misconnection)	10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%	0.9	10%	1.5 Vdc	± 0.01%	± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F	None	100 Ω, 1000 Ω	Excitation Current: 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB	Accuracy From 1 to 10.2 mA External Excitation Current: ± (0.025% of Reading + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.025% of Reading + 0.025 mV/ mA Excitation Current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 2001.0 Ω Allowable Excitation Current Range: <410 Ω: 10.2 mA max; steady or pulsed/intermittent 410 to 2001 Ω: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width	12.1 oz	12.1 oz (including boot and batteries)	76.2 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Battery Indication

Battery life

Display Type

Display Type Note

Height

Length

Operating Temperature Note

Operating Temperature, Max

Operating Temperature, Min

Protection

Relative Humidity Note

Relative Humidity, Max

Relative Humidity, Min

Supply Voltage

Temperature Drift

Temperature Drift Note

Thermocouple Type

Type of RTD Signal

Voltage Read

Voltage Source

Weight

Weight Note

Width

수량 / 장바구니

CL514-PLUS2,607,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.025 %

± (0.025% of reading + 0.05 Ω)

Read & Source Signals

A low battery indication is displayed when the battery voltage drops below the operating level

50 hr

LCD

High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

40.64 mm

143 mm

Nominal Temperature: 23°C

60 °C

-25 °C

Over-voltage protection to 60 V dc (rated for 30 seconds) (Protection against misconnection)

10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%

0.9

10%

1.5 Vdc

± 0.01%

± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F

None

100 Ω, 1000 Ω

Excitation Current: 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB

Accuracy From 1 to 10.2 mA External Excitation Current: ± (0.025% of Reading + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.025% of Reading + 0.025 mV/ mA Excitation Current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 2001.0 Ω Allowable Excitation Current Range: <410 Ω: 10.2 mA max; steady or pulsed/intermittent 410 to 2001 Ω: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width

12.1 oz

12.1 oz (including boot and batteries)

76.2 mm
