DwyerOmegaCL514-PLUS-series

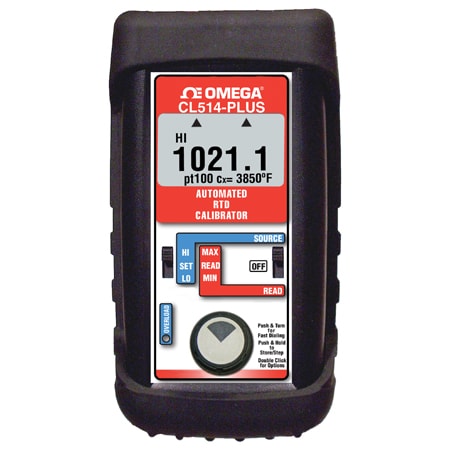

CL514-PLUS

SOURCE/READ RTD/OHMS CAL

가격: 2,607,710 원

VAT 10%: 260,771 원

총 금액: 2,868,481 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.025 %

Accuracy Detail:± (0.025% of reading + 0.05 Ω)

Additional Features 1:Read & Source Signals

Battery Indication:A low battery indication is displayed when the battery voltage drops below the operating level

Battery life:50 hr

Display Type:LCD

Display Type Note:High contrast graphic liquid crystal display, LED backlighting for use in low lit areas

Height:40.64 mm

Length:143 mm

Operating Temperature Note:Nominal Temperature: 23°C

Operating Temperature, Max:60 °C

Operating Temperature, Min:-25 °C

Protection:Over-voltage protection to 60 V dc (rated for 30 seconds) (Protection against misconnection)

Relative Humidity Note:10% ≤RH ≤90% (0 to 35°C), non-condensing 10% ≤RH≤ 70% (35 to 60°C), non-condensing, Nominal Relative Humidity: 70%

Relative Humidity, Max:0.9

Relative Humidity, Min:10%

Supply Voltage:1.5 Vdc

Temperature Drift:± 0.01%

Temperature Drift Note:± 0.01% of span outside of 23°C ± 10°C (73°C ± 18°F

Thermocouple Type:None

Type of RTD Signal:100 Ω, 1000 Ω

Voltage Read:Excitation Current: 0.5 mA nominal Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB

Voltage Source:Accuracy From 1 to 10.2 mA External Excitation Current: ± (0.025% of Reading + 0.05 Ω) Below 1 mA of External Excitation Current: ± (0.025% of Reading + 0.025 mV/ mA Excitation Current + 0.05 Ω) Resistance Ranges: 0.00 to 410.00, 410.1 to 2001.0 Ω Allowable Excitation Current Range: <410 Ω: 10.2 mA max; steady or pulsed/intermittent 410 to 2001 Ω: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width

Weight:12.1 oz

Weight Note:12.1 oz (including boot and batteries)

Width:76.2 mm
