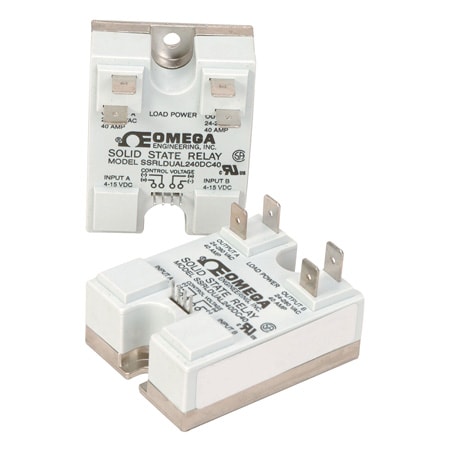

SSRDUAL240 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Current Output	Current, Min	Dropout Voltage	Features	Frequency	Housing Material	Input Control Signal	Input Resistance	Input-to-Output Capacitance	Input/Output-to-Ground Isolation	Isolated Analog Voltage	Leakage Current	Leakage Current Note	Measurement Current, Max	Measurement Current, Min	Number of Phases	Operating Temperature, Max	Operating Temperature, Min	Operating Voltage, Min	Power Cycle	Signal fail-safe	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Surge Current Rating	Thermal Resistivity	Thermal Sensitivity	Thermal Sensitivity Note	Voltage Output	Voltage, Max	수량 / 장바구니
SSRLDUAL240DC40177,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	40 A	100 mArms	1 Vdc	Dual Soild State Relays	47 to 63 Hz	UL 94V0 (self-extinguishing)	4 to 15 Vdc	500 Ω	8 pF	2500 Vrms, 2500 V	4000 Vrms	0.1 mA	Off-State Leakage (@ Maximum Line Voltage and Ta = 25°C)	34 mA	7.5 mA	1	80 °C	-40 °C	1.3 V	Turn-On Time: 8.33 ms; Turn-Off Time: 8.33 ms; *Random SSR’s turn on in less than 100 µs	500 Vµs	100 °C	-40 °C	24 to 280 Vac	1 Cycle, Max: 780 A	0.4	2435	I²T (60 Hz, 1 ⁄2 Cycle): DC40: 2435	550 V	550 V
SSRLDUAL240DC25156,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	25 A	100 mArms	1 Vdc	Dual Soild State Relays	47 to 63 Hz	UL 94V0 (self-extinguishing)	4 to 15 Vdc	500 Ω	8 pF	2500 Vrms, 2500 V	4000 Vrms	0.1 mA	Off-State Leakage (@ Maximum Line Voltage and Ta = 25°C)	34 mA	7.5 mA	1	80 °C	-40 °C	1.4 V	Turn-On Time: 8.33 ms; Turn-Off Time: 8.33 ms; *Random SSR’s turn on in less than 100 µs	500 Vµs	100 °C	-40 °C	24 to 280 Vac	1 Cycle, Max: 500 A	0.6	1041	I²T (60 Hz, 1 ⁄2 Cycle): DC25: 1041	550 V	550 V

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Current Output

Current, Min

Dropout Voltage

Features

Frequency

Housing Material

Input Control Signal

Input Resistance

Input-to-Output Capacitance

Input/Output-to-Ground Isolation

Isolated Analog Voltage

Leakage Current

Leakage Current Note

Measurement Current, Max

Measurement Current, Min

Number of Phases

Operating Temperature, Max

Operating Temperature, Min

Operating Voltage, Min

Power Cycle

Signal fail-safe

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Surge Current Rating

Thermal Resistivity

Thermal Sensitivity

Thermal Sensitivity Note

Voltage Output

Voltage, Max

수량 / 장바구니

SSRLDUAL240DC40177,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

40 A

100 mArms

1 Vdc

Dual Soild State Relays

47 to 63 Hz

UL 94V0 (self-extinguishing)

4 to 15 Vdc

500 Ω

8 pF

2500 Vrms, 2500 V

4000 Vrms

0.1 mA

Off-State Leakage (@ Maximum Line Voltage and Ta = 25°C)

34 mA

7.5 mA

80 °C

-40 °C

1.3 V

Turn-On Time: 8.33 ms; Turn-Off Time: 8.33 ms; *Random SSR’s turn on in less than 100 µs

500 Vµs

100 °C

-40 °C

24 to 280 Vac

1 Cycle, Max: 780 A

0.4

2435

I²T (60 Hz, 1 ⁄2 Cycle): DC40: 2435

550 V

SSRLDUAL240DC25156,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

25 A

100 mArms

1 Vdc

Dual Soild State Relays

47 to 63 Hz

UL 94V0 (self-extinguishing)

4 to 15 Vdc

500 Ω

8 pF

2500 Vrms, 2500 V

4000 Vrms

0.1 mA

Off-State Leakage (@ Maximum Line Voltage and Ta = 25°C)

34 mA

7.5 mA

80 °C

-40 °C

1.4 V

Turn-On Time: 8.33 ms; Turn-Off Time: 8.33 ms; *Random SSR’s turn on in less than 100 µs

500 Vµs

100 °C

-40 °C

24 to 280 Vac

1 Cycle, Max: 500 A

0.6

1041

I²T (60 Hz, 1 ⁄2 Cycle): DC25: 1041

550 V
