DwyerOmegaSSRDUAL240

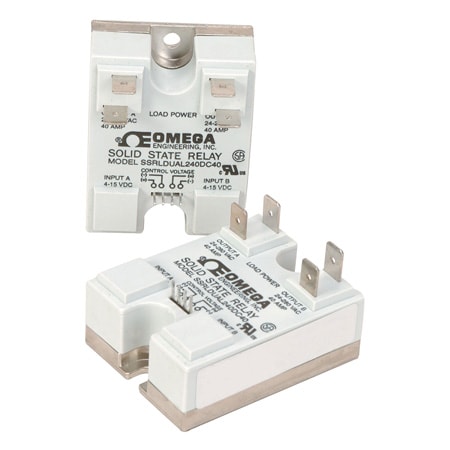

SSRLDUAL240DC25

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Current Output:25 A

Current, Min:100 mArms

Dropout Voltage:1 Vdc

Features:Dual Soild State Relays

Frequency:47 to 63 Hz

Housing Material:UL 94V0 (self-extinguishing)

Input Control Signal:4 to 15 Vdc

Input Resistance:500 Ω

Input-to-Output Capacitance:8 pF

Input/Output-to-Ground Isolation:2500 Vrms, 2500 V

Isolated Analog Voltage:4000 Vrms

Leakage Current:0.1 mA

Leakage Current Note:Off-State Leakage (@ Maximum Line Voltage and Ta = 25°C)

Measurement Current, Max:34 mA

Measurement Current, Min:7.5 mA

Number of Phases:1

Operating Temperature, Max:80 °C

Operating Temperature, Min:-40 °C

Operating Voltage, Min:1.4 V

Power Cycle:Turn-On Time: 8.33 ms; Turn-Off Time: 8.33 ms; *Random SSR’s turn on in less than 100 µs

Signal fail-safe:500 Vµs

Storage Temperature, Max:100 °C

Storage Temperature, Min:-40 °C

Supply Voltage:24 to 280 Vac

Surge Current Rating:1 Cycle, Max: 500 A

Thermal Resistivity:0.6

Thermal Sensitivity:1041

Thermal Sensitivity Note:I²T (60 Hz, 1 ⁄2 Cycle): DC25: 1041

Voltage Output:550 V

Voltage, Max:550 V
