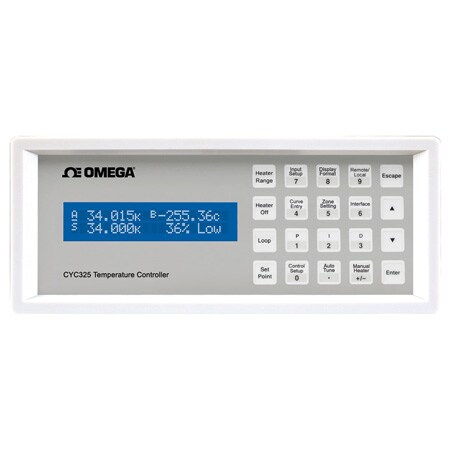

극저온 듀얼 채널 디지털 벤치탑 온도 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 1개의 상품
| 제품 번호 / 가격 | Brand | A/D Conversion | Accuracy | Accuracy Detail | Approvals | Baud Rate | Control Characteristics | Control Output | Control Type | Data Interface | Digital Connector Type | Display Annunciators | Display Measuring Units | Display Size | Display Type | Display Type Note | Electrical Connection | Filter | Form factor | Front Panel Display Readings | Heater Output Display | Heater Output Resolution | Height | Input Type | Input Type Note | Interface Features | Isolation | Keypad | Length | Loops | Measurement Type | Number of Control Outputs | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Power Consumption | RTD Type | Resolution | Sampling Rate | Sampling Rate Note | Sensor Input Configuration | Sensor Units Display Resolution | Setpoint Setting Resolution | Settable Parameters | Software Support | Supply Power Note | Supply Power Type | Supply Voltage | Temp Display Resolution | Thermocouple Type | Tuning | Update Rate, Max | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CYC32513,245,460 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 24-bit | Selectable | PTC RTD (0 to 500 Ω : Range) : ± 0.004 Ω, ± 0.01 % of rdgPTC RTD (0 to 5000 Ω : Range) : ± 0.004 Ω, ± 0.02 % of rdgNTC RTD (0 to 7500 Ω : Range) : ± 0.1 Ω, ± 0.04 % of rdgThermocouple (± 25 mV) : ± 1 µV,± 0.05 % of rdgThermocouple (± 50 mV) : ± 1 µV,± 0.05 % of rdg | CE Mark | 9600 to 57600 | PID Control Settings:Proportional (Gain): 0 to 1000 with 0.1 setting resolution Integral (Reset): 1 to 1000 (1000/s) with 0.1 setting resolution Derivative (Rate): 1 to 200% with 1% resolution Manual Output: 0 to 100% with 0.01% setting resolution Zone Control: 10 temperature zones with P, I, D, manual heater out, and heater range Setpoint Ramping: 0.1 K/min to 100 K/min Safety Limits: Curve temperature, power up heater off, short circuit protection | Heater | Manual Heater Output, Open Loop, PID Control | RS232 | 9 pin Sub-D | Autotune, Control input, Remote | °C, K, mV, V | 5.5 mm Digits | LCD | Display: 2-line, 20-character, liquid crystal display with 5.5 mm (0.216”) character heightDisplay Update Rate: 2 rdg/sOther Displays: Setpoint, heater range, and heater output; user selected | Ceramic Isothermal Block | Averages 2 to 64 input readings | Benchtop | 1 to 4 | Percentage of full power or current | 0.01 | 89 mm | Thermocouple, RTD, Thermistor | Temperature, sensor units Input Configuration: Each input is factory configured for either diode/RTD or thermocouple | IEEE-488 Interface Features: SH1, AH1, T5, L4, SR1, RL1, PP0, DC1, DT0, C0, E1 | Sensor inputs optically isolated from other circuits but not each other | 20-key membrane, numeric and specific functions | 368 mm | Control Loops : 2 | Temperature | 2 | 2 | 35 °C | 15 °C | 2 Heater output | None | 6 W | 4-lead differential With 6-Pin DIN Connector | Sensor dependent, refer to input specifications table | 10 Hz (10 updates/second) | To 10 rdg/s on each input | Measurement Type: 4-lead differentialExcitation: Constant current with current reversal for RTDs SupportedSensors: Diodes, silicon, GaAlAs; RTDs, 100 Ω Platinum, 1000 Ω Platinum, germanium, carbon-glass, CernoxTM, and RoxTM Standard Curves: CY7 and CY670, PT-100, PT-1000, RX-102A, RX-202AInput Connector: 6-pin DIN | Sensor dependent up to 5 digits | Same as display resolution (actual resolution is sensor dependent) | Curve Entry, Keypad Lock-out | LabVIEWTM driver; consult factory for availability | Standard 120 Vac, optional 240 Vac, 6%, -10%, 50 or 60 Hz, 85 VA | AC | 100 to 240 Vac | 0.001° from 0 to 99.999°, 0.01° from 100 to 999.99°, 0.1° above 1000° | E, K, T, AuFe 0.07% vs Cr, AuFe 0.03% vs Cr | Autotune, PID, PID zones | 10 rdg/s on each input (except 5 rdg/s on input A when configured as thermocouple) | 4 kg | 216 mm |
