DwyerOmegaCYC325-Series

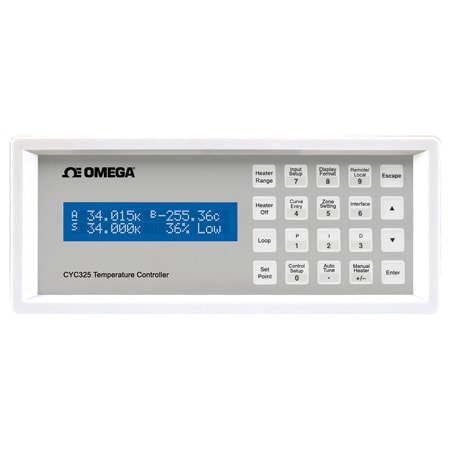

CYC325

Dual Channel Autotune Temperature Controllers

가격: 13,245,460 원

VAT 10%: 1,324,546 원

총 금액: 14,570,006 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

A/D Conversion:24-bit

Accuracy:Selectable

Accuracy Detail:PTC RTD (0 to 500 Ω : Range) : ± 0.004 Ω, ± 0.01 % of rdgPTC RTD (0 to 5000 Ω : Range) : ± 0.004 Ω, ± 0.02 % of rdgNTC RTD (0 to 7500 Ω : Range) : ± 0.1 Ω, ± 0.04 % of rdgThermocouple (± 25 mV) : ± 1 µV,± 0.05 % of rdgThermocouple (± 50 mV) : ± 1 µV,± 0.05 % of rdg

Approvals:CE Mark

Baud Rate:9600 to 57600

Control Characteristics:PID Control Settings:Proportional (Gain): 0 to 1000 with 0.1 setting resolution Integral (Reset): 1 to 1000 (1000/s) with 0.1 setting resolution Derivative (Rate): 1 to 200% with 1% resolution Manual Output: 0 to 100% with 0.01% setting resolution Zone Control: 10 temperature zones with P, I, D, manual heater out, and heater range Setpoint Ramping: 0.1 K/min to 100 K/min Safety Limits: Curve temperature, power up heater off, short circuit protection

Control Output:Heater

Control Type:Manual Heater Output, Open Loop, PID Control

Data Interface:RS232

Digital Connector Type:9 pin Sub-D

Display Annunciators:Autotune, Control input, Remote

Display Measuring Units:°C, K, mV, V

Display Size:5.5 mm Digits

Display Type:LCD

Display Type Note:Display: 2-line, 20-character, liquid crystal display with 5.5 mm (0.216”) character heightDisplay Update Rate: 2 rdg/sOther Displays: Setpoint, heater range, and heater output; user selected

Electrical Connection:Ceramic Isothermal Block

Filter:Averages 2 to 64 input readings

Form factor:Benchtop

Front Panel Display Readings:1 to 4

Heater Output Display:Percentage of full power or current

Heater Output Resolution:0.01

Height:89 mm

Input Type:Thermocouple, RTD, Thermistor

Input Type Note:Temperature, sensor units Input Configuration: Each input is factory configured for either diode/RTD or thermocouple

Interface Features:IEEE-488 Interface Features: SH1, AH1, T5, L4, SR1, RL1, PP0, DC1, DT0, C0, E1

Isolation:Sensor inputs optically isolated from other circuits but not each other

Keypad:20-key membrane, numeric and specific functions

Length:368 mm

Loops:Control Loops : 2

Measurement Type:Temperature

Number of Control Outputs:2

Number of Inputs:2

Operating Temperature, Max:35 °C

Operating Temperature, Min:15 °C

Output Detail:2 Heater output

Output Signal:None

Power Consumption:6 W

RTD Type:4-lead differential With 6-Pin DIN Connector

Resolution:Sensor dependent, refer to input specifications table

Sampling Rate:10 Hz (10 updates/second)

Sampling Rate Note:To 10 rdg/s on each input

Sensor Input Configuration:Measurement Type: 4-lead differentialExcitation: Constant current with current reversal for RTDs SupportedSensors: Diodes, silicon, GaAlAs; RTDs, 100 Ω Platinum, 1000 Ω Platinum, germanium, carbon-glass, CernoxTM, and RoxTM Standard Curves: CY7 and CY670, PT-100, PT-1000, RX-102A, RX-202AInput Connector: 6-pin DIN

Sensor Units Display Resolution:Sensor dependent up to 5 digits

Setpoint Setting Resolution:Same as display resolution (actual resolution is sensor dependent)

Settable Parameters:Curve Entry, Keypad Lock-out

Software Support:LabVIEWTM driver; consult factory for availability

Supply Power Note:Standard 120 Vac, optional 240 Vac, 6%, -10%, 50 or 60 Hz, 85 VA

Supply Power Type:AC

Supply Voltage:100 to 240 Vac

Temp Display Resolution:0.001° from 0 to 99.999°, 0.01° from 100 to 999.99°, 0.1° above 1000°

Thermocouple Type:E, K, T, AuFe 0.07% vs Cr, AuFe 0.03% vs Cr

Tuning:Autotune, PID, PID zones

Update Rate, Max:10 rdg/s on each input (except 5 rdg/s on input A when configured as thermocouple)

Weight:4 kg

Width:216 mm
