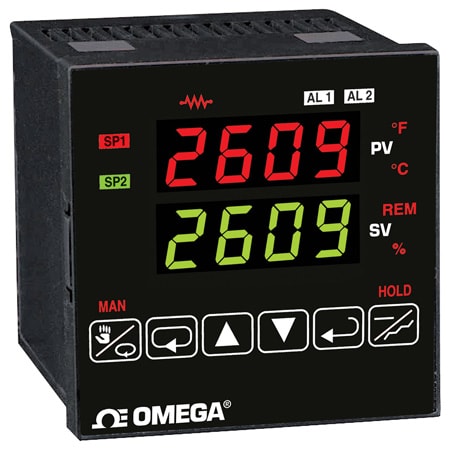

1/4 DIN 온도/프로세스 램프/소크 컨트롤러 (퍼지 로직 포함)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Control Output | Display Size | Display Type | Display Type Note | Enclosure Ratings | Form factor | Impedance Input | Input Type | Measurement Type | Measuring Range | Number of Control Outputs | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Ramp and Soak | Remote Setpoint | Sampling Rate | Supply Power Note | Supply Power Type | Supply Voltage | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN72053-PV1-RSP1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | Current, SSR Relay | 6.35 mm (.25 in) | 4 Digit LED | Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs | IP65, NEMA Type 4X | 1/4 DIN | Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum | Thermocouple, RTD, mA, mV, Voltage | Current, Temperature, Voltage | Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999 | 2 | 1 | 55 °C | -10 °C | Dual output 0 to 20mA and relay/DC pulse, Retransmission output, 0 to 20 mA, Remote setpoint,0 to 20 mA;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA | Current | 16 ramp/soak Programs | Current | 1 Hz (1 update/second) | 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20% | AC | 100 to 240 Vac | 369 g | |
CN72155가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | 2 Current, Alarm | 6.35 mm (.25 in) | 4 Digit LED | Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs | IP65, NEMA Type 4X | 1/4 DIN | Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum | Thermocouple, RTD, mA, mV, Voltage | Current, Temperature, Voltage | Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999 | 3 | 1 | 55 °C | -10 °C | Dual output two 0 to 20mA with alarm;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA | None | 16 ramp/soak Programs | None | 1 Hz (1 update/second) | 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20% | AC | 100 to 240 Vac | 369 g | |
CN721111,797,390 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | 2 SSR Relay, Alarm | 6.35 mm (.25 in) | 4 Digit LED | Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs | IP65, NEMA Type 4X | 1/4 DIN | Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum | Thermocouple, RTD, mA, mV, Voltage | Current, Temperature, Voltage | Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999 | 2 | 1 | 55 °C | -10 °C | Dual output 2 AC SSR/DC Pulse with alarm;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA | None | 16 ramp/soak Programs | None | 1 Hz (1 update/second) | 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20% | AC | 100 to 240 Vac | 369 g | |
CN72011가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | 2 SSR Relay | 6.35 mm (.25 in) | 4 Digit LED | Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs | IP65, NEMA Type 4X | 1/4 DIN | Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum | Thermocouple, RTD, mA, mV, Voltage | Current, Temperature, Voltage | Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999 | 2 | 1 | 55 °C | -10 °C | Dual output 2 AC SSR/DC Pulse;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA | None | 16 ramp/soak Programs | None | 1 Hz (1 update/second) | 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20% | AC | 100 to 240 Vac | 369 g | |
CN72055가격 문의32 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.25 % | ± 0.25% of span, ± 1 least significant digit | 2 Current | 6.35 mm (.25 in) | 4 Digit LED | Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs | IP65, NEMA Type 4X | 1/4 DIN | Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum | Thermocouple, RTD, mA, mV, Voltage | Current, Temperature, Voltage | Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999 | 2 | 1 | 55 °C | -10 °C | Dual output two 0 to 20mA;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA | None | 16 ramp/soak Programs | None | 1 Hz (1 update/second) | 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20% | AC | 100 to 240 Vac | 369 g |
