DwyerOmegaCN72000-Series

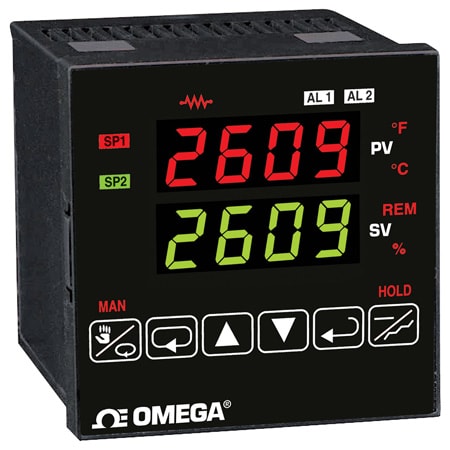

CN72011

Temperature/Process Controllers with Fuzzy Logic

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 32 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.25 %

Accuracy Detail:± 0.25% of span, ± 1 least significant digit

Control Output:2 SSR Relay

Display Size:6.35 mm (.25 in)

Display Type:4 Digit LED

Display Type Note:Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs

Enclosure Ratings:IP65, NEMA Type 4X

Form factor:1/4 DIN

Impedance Input:Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum

Input Type:Thermocouple, RTD, mA, mV, Voltage

Measurement Type:Current, Temperature, Voltage

Measuring Range:Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999

Number of Control Outputs:2

Number of Inputs:1

Operating Temperature, Max:55 °C

Operating Temperature, Min:-10 °C

Output Detail:Dual output 2 AC SSR/DC Pulse;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA

Output Signal:None

Ramp and Soak:16 ramp/soak Programs

Remote Setpoint:None

Sampling Rate:1 Hz (1 update/second)

Supply Power Note:100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20%

Supply Power Type:AC

Supply Voltage:100 to 240 Vac

Weight:369 g
