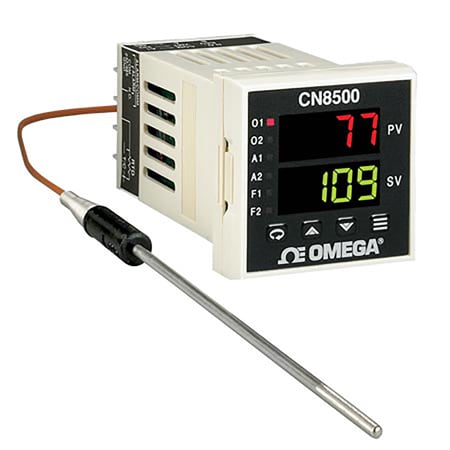

1/16 DIN 범용 오토튠 컨트롤러 (NEMA 4X 전면 패널)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 31개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | CMRR | Cold Junction Compensation | Control Characteristics | Control Output | Current, Max | Data Interface | Depth Behind Panel | Display Size | Display Type | Display Type Note | Electrical Connection | Enclosure Ratings | Form factor | Height | Input Type | Input Type Note | Length | Measurement Type | Measuring Range | Memory Backup | Number of Control Outputs | Number of Inputs | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Ramp and Soak | Relative Humidity | Repeatability | Resolution | Response Time | Sampling Rate | Series Mode Rejection | Setpoint Resolution | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Stability | Thermocouple Lead Resistance, Max | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN8502RTD-DC1-DC2-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | 2 DC Pulse | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | DC Pulse, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-DC1-DC2-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | 2 DC Pulse | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | DC Pulse, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-R1-DC2-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, DC Pulse | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502RTD-DC1-R2-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-DC1-R2-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502RTD-R1-R2-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay/Relay;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | None | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502RTD-DC1-DC2926,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | 2 DC Pulse | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | DC Pulse, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-R1-R2-C21,319,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay/Relay;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | None | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-DC1-DC2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | 2 DC Pulse | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | DC Pulse, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502RTD-R1-DC2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, DC Pulse | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502RTD-DC1-R2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-R1-DC2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, DC Pulse | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8501RTD-DC1-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 1 | 1 | 55 °C | 0 °C | DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-DC1-R2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay, DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502RTD-R1-R21,019,630 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay/Relay;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | None | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8501RTD-R1-C2가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | RTD | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | RTD (3-wire, 100Ω Pt ): -200 to 850°C, RTD (3-wire, 100Ω Pt ): -128.8 to 232.2°C | Solid State | 1 | 1 | 55 °C | 0 °C | Relay;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | None | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8501TC-DC1-C21,259,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 1 | 1 | 55 °C | 0 °C | DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8502TC-R1-R21,036,820 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay, NO SPST Relay | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 2 | 1 | 55 °C | 0 °C | Relay/Relay;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | None | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8501TC-R1-C21,145,040 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | SPDT Relay | 4 to 20 mA, 500 Ω maximum | RS232 | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 1 | 1 | 55 °C | 0 °C | Relay;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | None | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm | |
CN8501TC-DC1929,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 % | ± 0.2% of full scale, ± digit | >100 dB | 0.05°C/°C ambient | Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range Alarms: Adjustable for high/low, process or deviation Rate: 0 to 900 seconds Reset: 0 to 3600 seconds Cycle Time: 0.2 to 120 seconds Gain: 0 to 400 Gain Ratio: 0 to 2.0 (in 0.1 increments) On/Off Deadband: 1 to 100 counts Spread (Output 2): 0 to 100 counts (above setpoint) Damping: Adjustable (low, normal or high) Ramp to Setpoint: 1 to 100 minutes Autotune: Operator initiated from front panel Manual Control: Operator initiated from front panel | DC Pulse | 4 to 20 mA, 500 Ω maximum | None | 100 mm | 9.2 mm (.36 in) | 4 Digit LED | Dual LED, 4-digit, orange process display, green menu/ parameter display; 9.2 mm (0.37"), 3.5 Digit Dual Display LED | Screw Terminal | IP65, NEMA Type 4X | 1/16 DIN | 53 mm | Thermocouple | Thermocouple Lead Resistance: 100Ω max for rated accuracy Response Time: 0.1, 1.0, or 10 s Decimal Position: Selectable | 18.3 mm | Temperature | Type J (Iron-Constantan): -18 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -18 to 1349°C, Type T (Copper-Constantan): -129 to 316°C, Type N (OMEGALLOY® ): -18 to 1299°C, Type R/S (Pt/13%Rh-Pt): -18 to 1760°C, Pt/10%Rh-Pt : -18 to 1760°C | Solid State | 1 | 1 | 55 °C | 0 °C | DC Pulse;Output #1: Reverse acting (heating) Output #2: Direct acting (cooling) Mechanical Relay: Rated 5A @ 120 Vac, 3A @ 240 Vac Current: 4 to 20 mA, 500 Ω maximum Voltage: 20 Vdc pulse, 1 kΩ minimum load Triac: SSR, 120/240 Vac, zero voltage switched rated 1A continuous, 10 A surge @ 25°C ;Alarm Output-Optically isolated triac rated 1A, 120/240 Vac @ 25°C | DC Pulse | Ramp to SP | 90% RH, non-condensing | ± 1 count | 1°C | 0.1, 1.0, or 10 s | 10 Hz (10 updates/second) | >70 dB | 1 count/0.1 count | 115 to 230 Vac ± 10%, 50/60 Hz; 115 to 300 Vdc ± 10% (auto-polarity), optional 24 Vdc/Vac Output Voltage: 20 Vdc pulse, 1 kΩ minimum load | AC | 115 to 230 Vac | 5 μV/°C maximum; 3 μV/°C | 100 Ω | 0.25 kg | 53 mm |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
