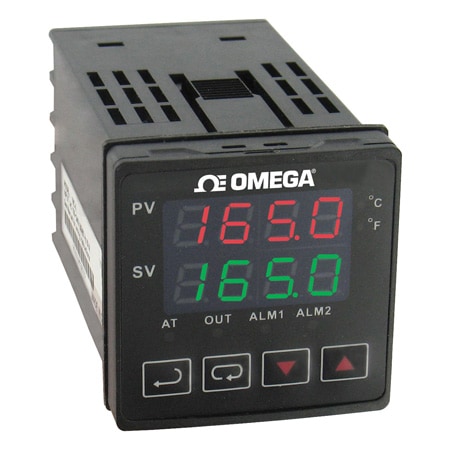

CN740-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Control Output	Data Interface	Depth Behind Panel	Display Size	Display Type	Display Type Note	Enclosure Ratings	Form factor	Front Bezel	Input Type	Measurement Type	Measuring Range	Memory Backup	Number of Control Outputs	Number of Inputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Panel Thickness, Max	Supply Power Note	Supply Power Type	Supply Voltage	Weight	수량 / 장바구니
CN745258,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	± 0.25% span, ± 1 least significant digit	None	RS485 Modbus	80 mm	6.35 mm (.25 in)	4 Digit LED	3.5 Digit Dual Display, Two 4-digit, 7 segment 6.35 mm H (0.25") LEDs PV: Red SV: Green	IP66	1/16 DIN	48 mm²	Thermocouple, RTD, Thermistor	Temperature	Type B : 100 to 1800°C, Type S : 0 to 1700°C, Type R : 0 to 1700°C, Type N : -200 to 1300°C, Type E : 0 to 600°C, Type T : -20 to 400°C, -200 to 400°C, Type J : -20 to 400°C, -100 to 850°C, Type K : 200 to 1300°C, -200 to 500°C, Type L : -200 to 500°C, Type U : -200 to 800°C, RTD : 0 to 100°C, -20 to 500°C, -200 to 600°C	Non-Volatile	1	1	50 °C	0 °C	4 to 20 mA;4 to 20 mA	Current	9.5 mm	100 to 240 Vac, 50/60 Hz	AC	100 to 240 Vac	114 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Control Output

Data Interface

Depth Behind Panel

Display Size

Display Type

Display Type Note

Enclosure Ratings

Form factor

Front Bezel

Input Type

Measurement Type

Measuring Range

Memory Backup

Number of Control Outputs

Number of Inputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Panel Thickness, Max

Supply Power Note

Supply Power Type

Supply Voltage

Weight

수량 / 장바구니

CN745258,900 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.25 %

± 0.25% span, ± 1 least significant digit

None

RS485 Modbus

80 mm

6.35 mm (.25 in)

4 Digit LED

3.5 Digit Dual Display, Two 4-digit, 7 segment 6.35 mm H (0.25") LEDs PV: Red SV: Green

IP66

1/16 DIN

48 mm²

Thermocouple, RTD, Thermistor

Temperature

Type B : 100 to 1800°C, Type S : 0 to 1700°C, Type R : 0 to 1700°C, Type N : -200 to 1300°C, Type E : 0 to 600°C, Type T : -20 to 400°C, -200 to 400°C, Type J : -20 to 400°C, -100 to 850°C, Type K : 200 to 1300°C, -200 to 500°C, Type L : -200 to 500°C, Type U : -200 to 800°C, RTD : 0 to 100°C, -20 to 500°C, -200 to 600°C

Non-Volatile

50 °C

0 °C

4 to 20 mA;4 to 20 mA

Current

9.5 mm

100 to 240 Vac, 50/60 Hz

100 to 240 Vac

114 g
