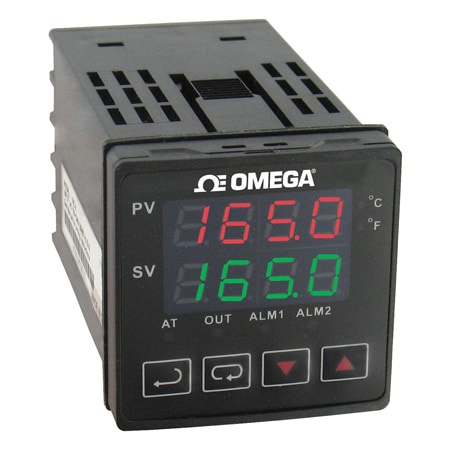

DwyerOmegaCN740-Series

CN745

1/16 DIN TEMP CONTROLLER

가격: 258,900 원

VAT 10%: 25,890 원

총 금액: 284,790 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.25 %

Accuracy Detail:± 0.25% span, ± 1 least significant digit

Control Output:None

Data Interface:RS485 Modbus

Depth Behind Panel:80 mm

Display Size:6.35 mm (.25 in)

Display Type:4 Digit LED

Display Type Note:3.5 Digit Dual Display, Two 4-digit, 7 segment 6.35 mm H (0.25") LEDs PV: Red SV: Green

Enclosure Ratings:IP66

Form factor:1/16 DIN

Front Bezel:48 mm²

Input Type:Thermocouple, RTD, Thermistor

Measurement Type:Temperature

Measuring Range:Type B : 100 to 1800°C, Type S : 0 to 1700°C, Type R : 0 to 1700°C, Type N : -200 to 1300°C, Type E : 0 to 600°C, Type T : -20 to 400°C, -200 to 400°C, Type J : -20 to 400°C, -100 to 850°C, Type K : 200 to 1300°C, -200 to 500°C, Type L : -200 to 500°C, Type U : -200 to 800°C, RTD : 0 to 100°C, -20 to 500°C, -200 to 600°C

Memory Backup:Non-Volatile

Number of Control Outputs:1

Number of Inputs:1

Operating Temperature, Max:50 °C

Operating Temperature, Min:0 °C

Output Detail:4 to 20 mA;4 to 20 mA

Output Signal:Current

Panel Thickness, Max:9.5 mm

Supply Power Note:100 to 240 Vac, 50/60 Hz

Supply Power Type:AC

Supply Voltage:100 to 240 Vac

Weight:114 g
