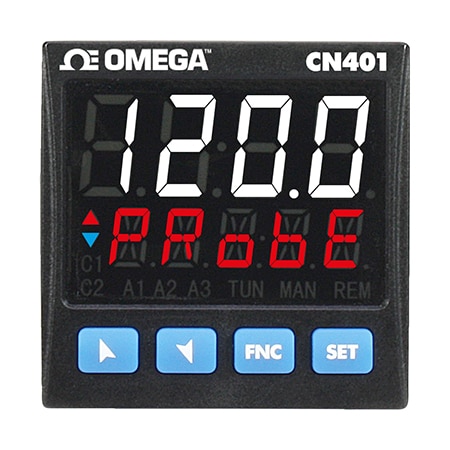

1/16 DIN 단일/이중 입력 PID 컨트롤러 NFC/RFID로 프로그래밍 가능
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | APP | Accuracy | Additional Features 1 | Alarm modes | Auto/Manual function | Control Algorithms | Control Output | Current Transformer Input | Data Interface | Data protection | Display Type | Display Type Note | Double P.I.D | Enclosure Material | Enclosure Ratings | Form factor | Galvanic Isolation | Height | Input Type | Length | Measurement Type | Number of Control Outputs | Number of Inputs | Open/Close logic | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Programmable Functions | Quick Set-up Options | Relative Humidity | Sampling Rate | Sampling Rate Note | Soft-Start | Supply Power Note | Supply Power Type | Supply Voltage | Tuning | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CN401-11445-C4494,540 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | NFC Programming via APP Direct Link for Android smartphones | ± 15 % | NFC, 2 D.I. | Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset | Output percentage command also with automatic change in case of sensor failure | On/Off Control, PID Control | 2 SSR Relay, SPDT Relay, SPST Relay, Analogue Output | Selection One C.T. 50 mA, 800 μs - 4096 points | RS485 Modbus | Access by password, Alarm setpoint, Lock of control | 4 Digit LED | 4 digits 0.5” white + 4 digits 0.3” red | Heating / Cooling P.I.D | Polycarbonate | IP20, IP65 | 1/16 DIN | 2.5 KV | 48 mm | Thermocouple, RTD, Thermistor, mA, mV, Digital I/O | 105 mm | Current, Resistance, Temperature, Voltage | 5 | 1 | Open / Close logic for motorized valves | 45 °C | 0 °C | 2 Relays, 2 SSRs, 1 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV | Current, Voltage | Pre-programmed cycle | Memory Card, software LABSOFTVIEW, or EASY-UP | 35 to 95 RH% | 470 Hz (470 updates/second) | Programmable up to 2.1 ms (frequency up to 470 Hz) | Rising gradient expressed as Degrees / Hour or fixed output percentage | 50/60 Hz | AC/DC | 24 to 230 Vac/Vdc | Autotune, Manual | 185 g | 48 mm | |
CN402-1114455-C4-DC670,360 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | NFC Programming via APP Direct Link for Android smartphones | ± 15 % | NFC & 2/4 Digital Inputs, CT Input | Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset | Output percentage command also with automatic change in case of sensor failure | On/Off Control, PID Control | 2 SSR Relay, SPDT Relay, 2 SPST Relay, 2 Analogue Output | Selection One C.T. 50 mA, 800 μs - 4096 points | RS485 Modbus | Access by password, Alarm setpoint, Lock of control | 4 Digit LED | 4 digits 0.5” white + 4 digits 0.3” red | Heating / Cooling P.I.D | Polycarbonate | IP20, IP65 | 1/16 DIN | 2.5 KV | 48 mm | Thermocouple, RTD, Thermistor, mA, mV, Digital I/O, Current Transformer | 105 mm | Current, Resistance, Temperature, Voltage | 7 | 2 | Open / Close logic for motorized valves | 45 °C | 0 °C | 3 Relays, 2 SSRs, 2 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV | Current, Voltage | Pre-programmed cycle | Memory Card, software LABSOFTVIEW, or EASY-UP | 35 to 95 RH% | 470 Hz (470 updates/second) | Programmable up to 2.1 ms (frequency up to 470 Hz) | Rising gradient expressed as Degrees / Hour or fixed output percentage | 50/60 Hz | DC | 24 Vac/Vdc | Autotune, Manual | 185 g | 48 mm | |
CN401-111445461,560 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | NFC Programming via APP Direct Link for Android smartphones | ± 15 % | NFC, 1/2 D.I, CT Input | Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset | Output percentage command also with automatic change in case of sensor failure | On/Off Control, PID Control | 2 SSR Relay, SPDT Relay, 2 SPST Relay, 2 Analogue Output | Selection One C.T. 50 mA, 800 μs - 4096 points | None | Access by password, Alarm setpoint, Lock of control | 4 Digit LED | 4 digits 0.5” white + 4 digits 0.3” red | Heating / Cooling P.I.D | Polycarbonate | IP20, IP65 | 1/16 DIN | 2.5 KV | 48 mm | Thermocouple, RTD, Thermistor, mA, mV, Digital I/O, Current Transformer | 105 mm | Current, Resistance, Temperature, Voltage | 7 | 1 | Open / Close logic for motorized valves | 45 °C | 0 °C | 3 Relays, 2 SSRs, 1 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV | Current, Voltage | Pre-programmed cycle | Memory Card, software LABSOFTVIEW, or EASY-UP | 35 to 95 RH% | 470 Hz (470 updates/second) | Programmable up to 2.1 ms (frequency up to 470 Hz) | Rising gradient expressed as Degrees / Hour or fixed output percentage | 50/60 Hz | AC/DC | 24 to 230 Vac/Vdc | Autotune, Manual | 185 g | 48 mm | |
CN401-11445362,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | NFC Programming via APP Direct Link for Android smartphones | ± 15 % | NFC, 2 D.I. | Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset | Output percentage command also with automatic change in case of sensor failure | On/Off Control, PID Control | 2 SSR Relay, SPDT Relay, SPST Relay, Analogue Output | Selection One C.T. 50 mA, 800 μs - 4096 points | None | Access by password, Alarm setpoint, Lock of control | 4 Digit LED | 4 digits 0.5” white + 4 digits 0.3” red | Heating / Cooling P.I.D | Polycarbonate | IP20, IP65 | 1/16 DIN | 2.5 KV | 48 mm | Thermocouple, RTD, Thermistor, mA, mV, Digital I/O | 105 mm | Current, Resistance, Temperature, Voltage | 5 | 1 | Open / Close logic for motorized valves | 45 °C | 0 °C | 2 Relays, 2 SSRs, 1 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV | Current, Voltage | Pre-programmed cycle | Memory Card, software LABSOFTVIEW, or EASY-UP | 35 to 95 RH% | 470 Hz (470 updates/second) | Programmable up to 2.1 ms (frequency up to 470 Hz) | Rising gradient expressed as Degrees / Hour or fixed output percentage | 50/60 Hz | AC/DC | 24 to 230 Vac/Vdc | Autotune, Manual | 185 g | 48 mm | |
CN402-1114455-C4634,540 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | NFC Programming via APP Direct Link for Android smartphones | ± 15 % | NFC & 2/4 Digital Inputs, CT Input | Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset | Output percentage command also with automatic change in case of sensor failure | On/Off Control, PID Control | 2 SSR Relay, SPDT Relay, 2 SPST Relay, 2 Analogue Output | Selection One C.T. 50 mA, 800 μs - 4096 points | RS485 Modbus | Access by password, Alarm setpoint, Lock of control | 4 Digit LED | 4 digits 0.5” white + 4 digits 0.3” red | Heating / Cooling P.I.D | Polycarbonate | IP20, IP65 | 1/16 DIN | 2.5 KV | 48 mm | Thermocouple, RTD, Thermistor, mA, mV, Digital I/O, Current Transformer | 105 mm | Current, Resistance, Temperature, Voltage | 7 | 2 | Open / Close logic for motorized valves | 45 °C | 0 °C | 3 Relays, 2 SSRs, 2 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV | Current, Voltage | Pre-programmed cycle | Memory Card, software LABSOFTVIEW, or EASY-UP | 35 to 95 RH% | 470 Hz (470 updates/second) | Programmable up to 2.1 ms (frequency up to 470 Hz) | Rising gradient expressed as Degrees / Hour or fixed output percentage | 50/60 Hz | AC | 115 to 230 Vac/Vdc | Autotune, Manual | 185 g | 48 mm |
