DwyerOmegaCN400-Series

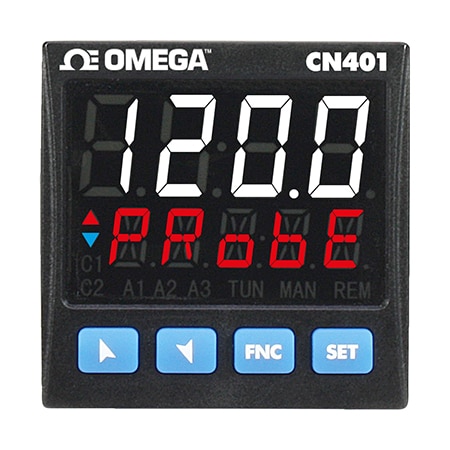

CN401-111445

1/16 DIN CONTROLLER, 3 RELAYS, 2 SSR DRI

가격: 461,560 원

VAT 10%: 46,156 원

총 금액: 507,716 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

APP:NFC Programming via APP Direct Link for Android smartphones

Accuracy:± 15 %

Additional Features 1:NFC, 1/2 D.I, CT Input

Alarm modes:Absolute or Threshold, Adjustable, Band, High, High/Low, Loop Break Alarm, Low, Manual reset

Auto/Manual function:Output percentage command also with automatic change in case of sensor failure

Control Algorithms:On/Off Control, PID Control

Control Output:2 SSR Relay, SPDT Relay, 2 SPST Relay, 2 Analogue Output

Current Transformer Input:Selection One C.T. 50 mA, 800 μs - 4096 points

Data Interface:None

Data protection:Access by password, Alarm setpoint, Lock of control

Display Type:4 Digit LED

Display Type Note:4 digits 0.5” white + 4 digits 0.3” red

Double P.I.D:Heating / Cooling P.I.D

Enclosure Material:Polycarbonate

Enclosure Ratings:IP20, IP65

Form factor:1/16 DIN

Galvanic Isolation:2.5 KV

Height:48 mm

Input Type:Thermocouple, RTD, Thermistor, mA, mV, Digital I/O, Current Transformer

Length:105 mm

Measurement Type:Current, Resistance, Temperature, Voltage

Number of Control Outputs:7

Number of Inputs:1

Open/Close logic:Open / Close logic for motorized valves

Operating Temperature, Max:45 °C

Operating Temperature, Min:0 °C

Output Detail:3 Relays, 2 SSRs, 1 Analog;2/3 Relays Outputs : Relay 2 A - 250 V AC resistive change 2 SSR Outputs : 12 / 24 V DC - 30 mA max 1/2 Analog : Selection 4 to 20 mA (40000 points ± 0,2% F.S.) or 0 to 10 VDC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV

Output Signal:Current, Voltage

Programmable Functions:Pre-programmed cycle

Quick Set-up Options:Memory Card, software LABSOFTVIEW, or EASY-UP

Relative Humidity:35 to 95 RH%

Sampling Rate:470 Hz (470 updates/second)

Sampling Rate Note:Programmable up to 2.1 ms (frequency up to 470 Hz)

Soft-Start:Rising gradient expressed as Degrees / Hour or fixed output percentage

Supply Power Note:50/60 Hz

Supply Power Type:AC/DC

Supply Voltage:24 to 230 Vac/Vdc

Tuning:Autotune, Manual

Weight:185 g
