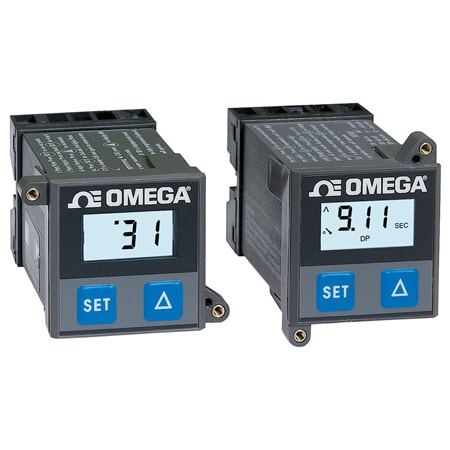

CN1A-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Control Output	Cutout Dimensions	Display Type	Form factor	Height	Input Type	Length	Measurement Type	Measuring Range	Memory Backup	Number of Inputs	Offset	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Programmable Functions	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Weight	Width	수량 / 장바구니
CN1A-TC가격 문의	OMEGA Engineering	± 0.25 %	± 0.25% over 90% of scale range (-50 to 950°C) and ± 1% over the extreme 5% of the scale limits (-99 to -51 and 950 to 999°C)	Alarm Output	SPDT Relay	45 x 45 mm	2.5 Digit LCD	1/16 DIN	48 mm	Thermocouple	89 mm	Temperature	Type J: -99 to 700°C Type K: -99 to 999°C Type T: -99 to 300°C Type N: -99 to 999°C	EEPROM	1	± 5°C (Offset Accuracy)	50 °C	-10 °C	Mechanical Relay;SPDT relay, rated @ 3 A, 240 Vac;Alarm Output-SPST N.O. relay, rated @ 3 A, 240 Vac	None	alarm, °C/°F, control action, hysteresis, offset, password, sensor type, setpoint limits	85 °C	-20 °C	10 to 32 Vac/Vdc @ 60 mA maximum, 90 to 260 Vac, 50/60 Hz @ 1.5 Va maximum	AC	90 to 260 Vac	205 g	48 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Control Output

Cutout Dimensions

Display Type

Form factor

Height

Input Type

Length

Measurement Type

Measuring Range

Memory Backup

Number of Inputs

Offset

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Programmable Functions

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Weight

Width

수량 / 장바구니

CN1A-TC가격 문의

OMEGA Engineering

± 0.25 %

± 0.25% over 90% of scale range (-50 to 950°C) and ± 1% over the extreme 5% of the scale limits (-99 to -51 and 950 to 999°C)

Alarm Output

SPDT Relay

45 x 45 mm

2.5 Digit LCD

1/16 DIN

48 mm

Thermocouple

89 mm

Temperature

Type J: -99 to 700°C Type K: -99 to 999°C Type T: -99 to 300°C Type N: -99 to 999°C

EEPROM

± 5°C (Offset Accuracy)

50 °C

-10 °C

Mechanical Relay;SPDT relay, rated @ 3 A, 240 Vac;Alarm Output-SPST N.O. relay, rated @ 3 A, 240 Vac

None

alarm, °C/°F, control action, hysteresis, offset, password, sensor type, setpoint limits

85 °C

-20 °C

10 to 32 Vac/Vdc @ 60 mA maximum, 90 to 260 Vac, 50/60 Hz @ 1.5 Va maximum

90 to 260 Vac

205 g

48 mm
