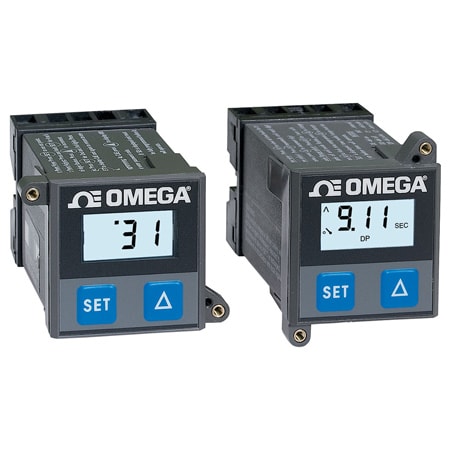

DwyerOmegaCN1A-Series
CN1A-TC
TEMPERATURE CONTROLLER CE
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Accuracy Detail:± 0.25% over 90% of scale range (-50 to 950°C) and ± 1% over the extreme 5% of the scale limits (-99 to -51 and 950 to 999°C)
Additional Features 1:Alarm Output
Control Output:SPDT Relay
Cutout Dimensions:45 x 45 mm
Display Type:2.5 Digit LCD
Form factor:1/16 DIN
Height:48 mm
Input Type:Thermocouple
Length:89 mm
Measurement Type:Temperature
Measuring Range:Type J: -99 to 700°C Type K: -99 to 999°C Type T: -99 to 300°C Type N: -99 to 999°C
Memory Backup:EEPROM
Number of Inputs:1
Offset:± 5°C (Offset Accuracy)
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Output Detail:Mechanical Relay;SPDT relay, rated @ 3 A, 240 Vac;Alarm Output-SPST N.O. relay, rated @ 3 A, 240 Vac
Output Signal:None
Programmable Functions:alarm, °C/°F, control action, hysteresis, offset, password, sensor type, setpoint limits
Storage Temperature, Max:85 °C
Storage Temperature, Min:-20 °C
Supply Power Note:10 to 32 Vac/Vdc @ 60 mA maximum, 90 to 260 Vac, 50/60 Hz @ 1.5 Va maximum
Supply Power Type:AC
Supply Voltage:90 to 260 Vac
Weight:205 g
Width:48 mm
