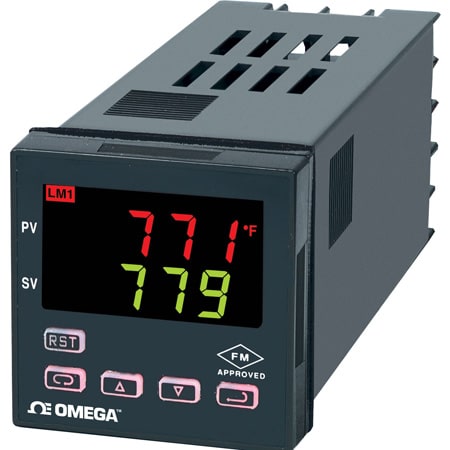

CN7400-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Bezel Size	Control Output	Cutout Dimensions	DIN Rail Size	Display Size	Display Type	Display Type Note	Form factor	Input Type	Measuring Range	Memory Backup	Number of Inputs	Number of Outputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Panel Depth	Panel Thickness	Power Consumption	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Sensor Type	Weight	Series ID	수량 / 장바구니
CN7400-Series가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다.	-	± 0.25 %	±0.25% of span, ±1 least significant digit	None	48 mm	-	45 x 45 mm	0.0625 mm	7.62 mm (0.30 in)	4 Digit LED	Two 4-digit, 7-segment, 7.62 mm H (0.3") LEDs	1/16 DIN	Thermocouple, RTD, mA, Voltage	Thermocouple Type K: -200 to 2500°F Type J: -100 to 1600°F Type T: -350 to 750°F Type E: -100 to 1800°F Type N: -100 to 2372°F Type R: 0 to 3200°F Type S: 0 to 3200°F Type B: 75 to 3308°F Type L(J DIN): -100 to 1600°F Type C: 0 to 4208°F RTD (2 wire) Pt100 RTD (0.00385): -200 to 875°C Pt100 RTD (0.00392): -200 to 875°C RTD, 120 Ω Nickel (0.00628): -80 to 320°C RTD, Pt1000 (0.00385): -200 to 875°C Process Current 0 to 20 mA, 4 to 20 mA: 1999 to 9999 Process Voltage 0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc: 1999 to 9999	Non-Volatile	1	-	55 °C	-10 °C	Relay Control Output Ratings: Resistive: SPST, 3 A @ 240 Vac Inductive: 1.5 A @ 240 Vac	133 mm	6.35 mm	5 VA	100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20% Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current	AC	100 to 240 Vac	Thermocouple	227 g	CN7400-Series
CN7430771,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 %	±0.25% of span, ±1 least significant digit	None	48 mm	NO Relay	45 x 45 mm	0.0625 mm	7.62 mm (0.30 in)	4 Digit LED	Two 4-digit, 7-segment, 7.62 mm H (0.3") LEDs	1/16 DIN	Thermocouple, RTD, mA, Voltage	Thermocouple Type K: -200 to 2500°F Type J: -100 to 1600°F Type T: -350 to 750°F Type E: -100 to 1800°F Type N: -100 to 2372°F Type R: 0 to 3200°F Type S: 0 to 3200°F Type B: 75 to 3308°F Type L(J DIN): -100 to 1600°F Type C: 0 to 4208°F RTD (2 wire) Pt100 RTD (0.00385): -200 to 875°C Pt100 RTD (0.00392): -200 to 875°C RTD, 120 Ω Nickel (0.00628): -80 to 320°C RTD, Pt1000 (0.00385): -200 to 875°C Process Current 0 to 20 mA, 4 to 20 mA: 1999 to 9999 Process Voltage 0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc: 1999 to 9999	Non-Volatile	1	1	55 °C	-10 °C	Relay Control Output Ratings: Resistive: SPST, 3 A @ 240 Vac Inductive: 1.5 A @ 240 Vac	133 mm	6.35 mm	5 VA	100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20% Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current	AC	100 to 240 Vac	Thermocouple	227 g	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Bezel Size

Control Output

Cutout Dimensions

DIN Rail Size

Display Size

Display Type

Display Type Note

Form factor

Input Type

Measuring Range

Memory Backup

Number of Inputs

Number of Outputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Panel Depth

Panel Thickness

Power Consumption

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Sensor Type

Weight

Series ID

수량 / 장바구니

CN7400-Series가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다.

± 0.25 %

±0.25% of span, ±1 least significant digit

None

48 mm

45 x 45 mm

0.0625 mm

7.62 mm (0.30 in)

4 Digit LED

Two 4-digit, 7-segment, 7.62 mm H (0.3") LEDs

1/16 DIN

Thermocouple, RTD, mA, Voltage

Thermocouple Type K: -200 to 2500°F Type J: -100 to 1600°F Type T: -350 to 750°F Type E: -100 to 1800°F Type N: -100 to 2372°F Type R: 0 to 3200°F Type S: 0 to 3200°F Type B: 75 to 3308°F Type L(J DIN): -100 to 1600°F Type C: 0 to 4208°F RTD (2 wire) Pt100 RTD (0.00385): -200 to 875°C Pt100 RTD (0.00392): -200 to 875°C RTD, 120 Ω Nickel (0.00628): -80 to 320°C RTD, Pt1000 (0.00385): -200 to 875°C Process Current 0 to 20 mA, 4 to 20 mA: 1999 to 9999 Process Voltage 0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc: 1999 to 9999

Non-Volatile

55 °C

-10 °C

Relay Control Output Ratings: Resistive: SPST, 3 A @ 240 Vac Inductive: 1.5 A @ 240 Vac

133 mm

6.35 mm

5 VA

100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20% Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current

100 to 240 Vac

Thermocouple

227 g

CN7400-Series

CN7430771,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering
