DwyerOmegaCN7400-Series
CN7430

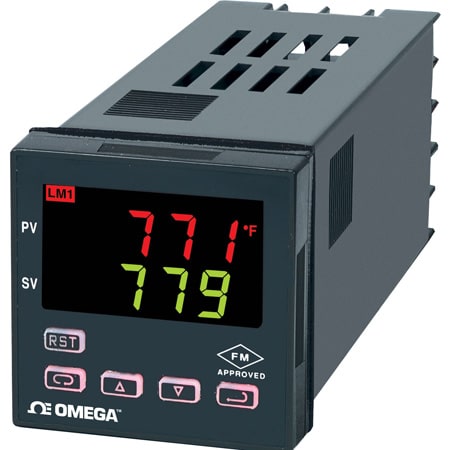

TEMPERATURE CONTROLLER
- 가격
- 771,100 원
- VAT 10%
- 77,110 원
- 총 금액
- 848,210 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Accuracy Detail:±0.25% of span, ±1 least significant digit
Additional Features 1:None
Bezel Size:48 mm
Control Output:NO Relay
Cutout Dimensions:45 x 45 mm
DIN Rail Size:0.0625 mm
Display Size:7.62 mm (0.30 in)
Display Type:4 Digit LED
Display Type Note:Two 4-digit, 7-segment, 7.62 mm H (0.3") LEDs
Form factor:1/16 DIN
Input Type:Thermocouple, RTD, mA, Voltage
Measuring Range:Thermocouple Type K: -200 to 2500°F Type J: -100 to 1600°F Type T: -350 to 750°F Type E: -100 to 1800°F Type N: -100 to 2372°F Type R: 0 to 3200°F Type S: 0 to 3200°F Type B: 75 to 3308°F Type L(J DIN): -100 to 1600°F Type C: 0 to 4208°F RTD (2 wire) Pt100 RTD (0.00385): -200 to 875°C Pt100 RTD (0.00392): -200 to 875°C RTD, 120 Ω Nickel (0.00628): -80 to 320°C RTD, Pt1000 (0.00385): -200 to 875°C Process Current 0 to 20 mA, 4 to 20 mA: 1999 to 9999 Process Voltage 0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc: 1999 to 9999
Memory Backup:Non-Volatile
Number of Inputs:1
Number of Outputs:1
Operating Temperature, Max:55 °C
Operating Temperature, Min:-10 °C
Output Detail:Relay Control Output Ratings: Resistive: SPST, 3 A @ 240 Vac Inductive: 1.5 A @ 240 Vac
Panel Depth:133 mm
Panel Thickness:6.35 mm
Power Consumption:5 VA
Supply Power Note:100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20% Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current
Supply Power Type:AC
Supply Voltage:100 to 240 Vac
Temperature Sensor Type:Thermocouple
Weight:227 g
