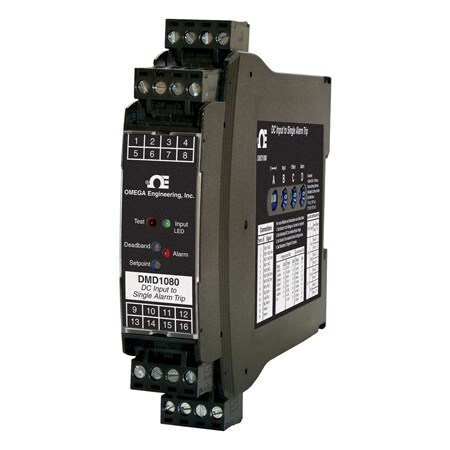

DMD-Srs-Alarm-Module

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Enclosure Ratings	Height	Impedance Input	Input Range Note	Isolation	Length	Number of Outputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Power Consumption	Reset	Response Time	Supply Power Note	Supply Voltage	Temperature Stability	Width	Wire Gauge	수량 / 장바구니
DMD1080667,640 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	IP40	117 mm	Voltage: 250 kΩ minimum,Current: 50 Ω typical,Voltage Burden: 1 Vdc at 20 mA current input	24 field selectable ranges via switch settings_x000D_ Voltage: 0-50 mV to 0-10 Vdc_x000D_ Bipolar Voltage: ±5 Vdc or ±10 Vdc_x000D_ Current: 0-1 mADC to 0-20 mADC, 4-20 mADC	1200V Isolation: power to input 600 Vac or 600 Vdc common mode protection	122 mm	2	60 °C	-10 °C	8 Amps @ 240 Vac resistive load 5 Amps @ 240 Vac inductive load 8 Amps @ 30 Vdc resistive load 3.5 Amps @ 30 Vdc inductive external contact protection such as a RC snubber is recommended for inductive loads	2 W	Toggles relay to opposite state when pressed; resets latching relay if latching relay mode is selected	70 ms	60 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2W maximum; Input Loop Power Supply: 15 Vdc ±10%, 25 mADC maximum ripple, less then 10 mV rms may be wired for sinking or sourcing mA input	60 to 265 Vac	better than 1% of span over operating temperature range; better than 0.02% of span per °C	22.5 mm	14 AWG
DMD1080-DC667,640 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	IP40	117 mm	Voltage: 250 kΩ minimum,Current: 50 Ω typical,Voltage Burden: 1 Vdc at 20 mA current input	24 field selectable ranges via switch settings_x000D_ Voltage: 0-50 mV to 0-10 Vdc_x000D_ Bipolar Voltage: ±5 Vdc or ±10 Vdc_x000D_ Current: 0-1 mADC to 0-20 mADC, 4-20 mADC	1200V Isolation: power to input 600 Vac or 600 Vdc common mode protection	122 mm	2	60 °C	-10 °C	8 Amps @ 240 Vac resistive load 5 Amps @ 240 Vac inductive load 8 Amps @ 30 Vdc resistive load 3.5 Amps @ 30 Vdc inductive external contact protection such as a RC snubber is recommended for inductive loads	2 W	Toggles relay to opposite state when pressed; resets latching relay if latching relay mode is selected	70 ms	9 to 30 Vdc or 10 to 32 Vac, 50/60 Hz, 2W maximum; Input Loop Power Supply: 15 Vdc ±10%, 25 mADC maximum ripple, less then 10 mV rms may be wired for sinking or sourcing mA input	9 to 30 Vdc	better than 1% of span over operating temperature range; better than 0.02% of span per °C	22.5 mm	14 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Enclosure Ratings

Height

Impedance Input

Input Range Note

Isolation

Length

Number of Outputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Power Consumption

Reset

Response Time

Supply Power Note

Supply Voltage

Temperature Stability

Width

Wire Gauge

수량 / 장바구니

DMD1080667,640 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

IP40

117 mm

Voltage: 250 kΩ minimum,Current: 50 Ω typical,Voltage Burden: 1 Vdc at 20 mA current input

24 field selectable ranges via switch settings_x000D_ Voltage: 0-50 mV to 0-10 Vdc_x000D_ Bipolar Voltage: ±5 Vdc or ±10 Vdc_x000D_ Current: 0-1 mADC to 0-20 mADC, 4-20 mADC

1200V Isolation: power to input 600 Vac or 600 Vdc common mode protection

122 mm

60 °C

-10 °C

8 Amps @ 240 Vac resistive load 5 Amps @ 240 Vac inductive load 8 Amps @ 30 Vdc resistive load 3.5 Amps @ 30 Vdc inductive external contact protection such as a RC snubber is recommended for inductive loads

2 W

Toggles relay to opposite state when pressed; resets latching relay if latching relay mode is selected

70 ms

60 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2W maximum; Input Loop Power Supply: 15 Vdc ±10%, 25 mADC maximum ripple, less then 10 mV rms may be wired for sinking or sourcing mA input

60 to 265 Vac

better than 1% of span over operating temperature range; better than 0.02% of span per °C

22.5 mm

14 AWG

DMD1080-DC667,640 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

IP40

117 mm

Voltage: 250 kΩ minimum,Current: 50 Ω typical,Voltage Burden: 1 Vdc at 20 mA current input

24 field selectable ranges via switch settings_x000D_ Voltage: 0-50 mV to 0-10 Vdc_x000D_ Bipolar Voltage: ±5 Vdc or ±10 Vdc_x000D_ Current: 0-1 mADC to 0-20 mADC, 4-20 mADC

1200V Isolation: power to input 600 Vac or 600 Vdc common mode protection

122 mm

60 °C

-10 °C

2 W

Toggles relay to opposite state when pressed; resets latching relay if latching relay mode is selected

70 ms

9 to 30 Vdc or 10 to 32 Vac, 50/60 Hz, 2W maximum; Input Loop Power Supply: 15 Vdc ±10%, 25 mADC maximum ripple, less then 10 mV rms may be wired for sinking or sourcing mA input

9 to 30 Vdc

better than 1% of span over operating temperature range; better than 0.02% of span per °C

22.5 mm

14 AWG
