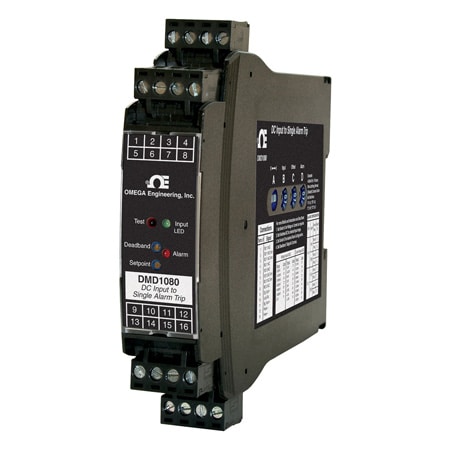

DwyerOmegaDMD-Srs-Alarm-Module
DMD1080
ALARM MODULE - DC INPUT TO SINGLE ALARM
- 가격
- 667,640 원
- VAT 10%
- 66,764 원
- 총 금액
- 734,404 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Enclosure Ratings:IP40
Height:117 mm
Impedance Input:Voltage: 250 kΩ minimum,Current: 50 Ω typical,Voltage Burden: 1 Vdc at 20 mA current input
Input Range Note:24 field selectable ranges via switch settings_x000D_ Voltage: 0-50 mV to 0-10 Vdc_x000D_ Bipolar Voltage: ±5 Vdc or ±10 Vdc_x000D_ Current: 0-1 mADC to 0-20 mADC, 4-20 mADC
Isolation:1200V Isolation: power to input 600 Vac or 600 Vdc common mode protection
Length:122 mm
Number of Outputs:2
Operating Temperature, Max:60 °C
Operating Temperature, Min:-10 °C
Output Detail:8 Amps @ 240 Vac resistive load 5 Amps @ 240 Vac inductive load 8 Amps @ 30 Vdc resistive load 3.5 Amps @ 30 Vdc inductive external contact protection such as a RC snubber is recommended for inductive loads
Power Consumption:2 W
Reset:Toggles relay to opposite state when pressed; resets latching relay if latching relay mode is selected
Response Time:70 ms
Supply Power Note:60 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2W maximum; Input Loop Power Supply: 15 Vdc ±10%, 25 mADC maximum ripple, less then 10 mV rms may be wired for sinking or sourcing mA input
Supply Voltage:60 to 265 Vac
Temperature Stability:better than 1% of span over operating temperature range; better than 0.02% of span per °C
Width:22.5 mm
Wire Gauge:14 AWG
