DwyerOmegaModel-TBU-00
TBU-00

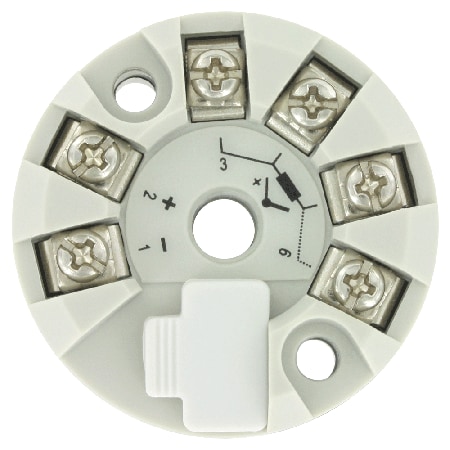

Universal head mount temperature transmitter
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.1 %
Applications:Boilers, Oil, Refrigeration, Refrigeration Equipment
Compliance:CE
Current Output:4 to 20 mA
Input Note:Thermocouples J, K, R, S, T, N, E, and B; 2, 3, or 4-wire Pt100 RTD, 2 or 3-wire Pt1000 RTD, 2-wire NTC thermistor, or 0-50 mV voltage. RTD: 238 to 752°F, Thermocouple: 32 to 1202 °F
Measurement Type:Thermocouple, RTD, Thermistor, Voltage
Number of Wires:2, 3, 4
Operating Temperature, Max:185 °F
Operating Temperature, Min:-40 °F
Output Detail:Linearized 4-20 mA, 2-wire or 20-4 mA loop powered
Output Signal:Current
Response Time:1.6 s
Response Time Note:1.6 s, typical.
Sensor Type:Thermocouple, RTD, Thermistor
Supply Power Type:DC
Supply Voltage:10 to 35 Vdc
Temperature Drift:<± 0.16%/25°C
Temperature Input Range:32 to 1202 °F
Voltage Accuracy:± 0.13%
Voltage Input Range:0 to 50 mV
Weight:40 g
