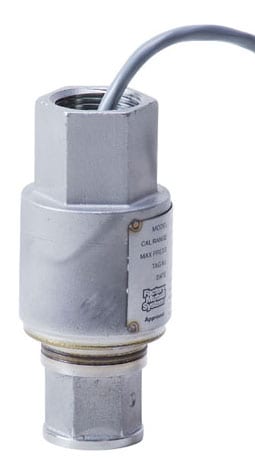

DwyerOmegaPX831
PX831-015GI
0 to 15 psi, Gauge, 4 to 20 mA
- 가격
- 1,431,960 원
- VAT 10%
- 143,196 원
- 총 금액
- 1,575,156 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.3 %
Accuracy Class:> 0.25%
Accuracy Detail:± 0.3% of span @ 25°C (includes linearity, hysteresis and repeatability)
Electrical Connection:1/2 in NPT male Conduit with Cable
Electrical Output:4 to 20 mA
Electrical Output Note:4 to 20 mA(2 wire)
Enclosure Ratings:IP66, NEMA Type 4
Fill Fluid:DC 200 silicone oil
Loop Resistance, Max:900 Ω @ 30 Vdc
Materials, Wetted:316 Stainless Steel, 316L Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:15 psi
Measurement Pressure, Min:0 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-40 °C
Output Signal:Current
Process Connection Size:1/2 in
Process Connection Type:NPT Female
Proof Pressure:3x Full Scale
Proof Pressure Note:300% of rated pressure
Relative Humidity:0 to 1
Span Setting Adjustable Range:16 mA ± 1% of span
Storage Temperature, Max:100 °C
Storage Temperature, Min:-40 °C
Supply Voltage:12 to 30 Vdc
Thermal Effect on Span error, Max:± 2%
Thermal Effect on Zero error, Max:± 2%, ± 2%
Vibration:± 0.1% FS for 3 g to 200 Hz
Weight:374 g
Zero/Balance Error:4 mA ± 2%
