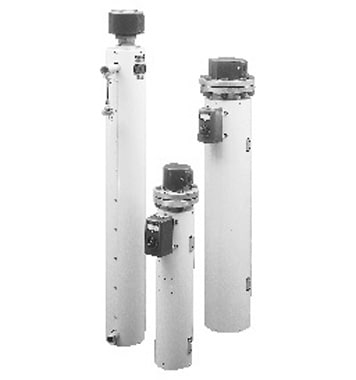

DwyerOmegaNWHMTO-HEATER
NWHMTO-03-009P-E2/240
Light and Medium Weight Oil Applications
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:UL, CSA and Other Third Party
Cooling Type:N/A
Diameter:2.5 in
Enclosure Panel Type:Moisture Resistant/Explosion Resistant
Heater Length:57.5 in
Heater Power:9 kW
Materials:Carbon Steel
Mounting Holes Center Length:39 1/4 in
Number of Circuits:1
Number of Heating Elements:3
Number of Phases:1
Operating Temperature, Max:550 °F
Operating Temperature, Min:200 °F
Pipe Inlet and Outlet Gap:45.25 in
Power Density:23 W/in²
Process Connection Size:1 in
Sheath Diameter:0.475 in
Sheath Material:Steel
Supply Voltage:240 Vac
Vessel Material Note:2 1 ⁄2" Galvanized Carbon Steel Pipe Body, 150 Lb Construction
Weight:40 lb
