DwyerOmegaEA2-TX
EA2-TX-BBA

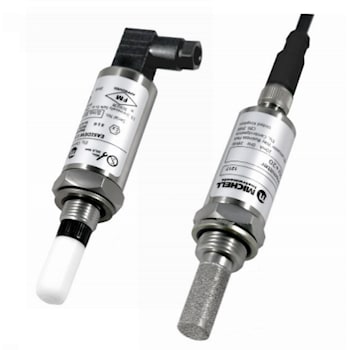

Easidew 2-wire Dew-Point Transmitter, 4 to 20 mA output, 5/8" UNF thread, -110 to +20°C range, SS sintered guard for <80 µm particulates, no oxygen cleaning required.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accessory Type:Flange for 5/8” 18 UNF & 3/4” 16 UNF process connections
Accuracy:± 2 °C (± 3.6 °F)
Accuracy Detail:±2°C (±3.6°F) dew point, ±2°C (±3.6°F) dew point
Applications:Air, Air Dryers, Chemical Refineries, Clean Rooms, Clean Water and Purified Solutions, Compressor Control, Filter Monitoring, Flow Measurement, Gases, HVAC, Industrial and Manufacturing, Natural Gas Compressors, Power Plants & Boilers, R&D/Engineering Testing, Refrigeration, Refrigeration Equipment, Temperature Maintenance, Waste Water Applications
Calibration Note:Traceable 13-point calibration certificate
Compensated Temperature, Max:50 °C
Compensated Temperature, Min:-20 °C
Compliance Note:ATEX/UKCA: II 1 G Ex ia IIC T4 Ga (-20 to +70 °C) IECEx: EX ia IIC T4 Ga (-20 to +70 °C) TR CU @ 0Ex ia IICT4 Ga (-20 to +70 °C) cQPSus: Class I, Division 1, Groups A, B, C & D, T4 Class I, Zone 0, AEx ia IIC T4 Gb, Ex ia IIC T4 Gb Tamb +70 °C, ATEX/UKCA: II 1 G Ex ia IIC T4 Ga (-20 to +70 °C) IECEx: EX ia IIC T4 Ga (-20 to +70 °C) TR CU @ 0Ex ia IICT4 Ga (-20 to +70 °C) cQPSus: Class I, Division 1, Groups A, B, C & D, T4 Class I, Zone 0, AEx ia IIC T4 Gb, Ex ia IIC T4 Gb Tamb +70 °C
Dimensions Note:MiniDIN 43650 form C L=132mm x ø45mm (with connector cable), MiniDIN 43650 form C L=132mm x ø45mm (with connector cable)
Electrical Connection:Mini DIN 43650 C
Electrical Output:4 to 20 mA
Enclosure Ratings:IP66, NEMA Type 4
Factory Setting:Sensor fault: 23 mA; Under-range dew point: 4 mA; Over-range dew point: 20 mA
Flow Rate Note:1 to 5 Nl/min mounted in standard sampling block; 0 to 10 m/sec direct insertion
Galvanic Isolation:KFD2-CR-EX1.20200,KFD2-CR-EX1.30200,KFD0-CS-EX1.50P,KFD0-CS-EX2.50P,KFD2-STC4-EX1.H,MTL5041,MTL5040
Height:132 mm
Housing Material:316 Stainless Steel
Length:45 mm
Load Resistance:Max 250 Ω @ 14 V (500 Ω @ 24 V)
Operating Pressure, Max:52.5 MPa
Operating Temperature, Max:60 °C
Operating Temperature, Min:-40 °C
Process Connection Size:5/8 in
Process Connection Type:UNF Male
Repeatability:0.5°C (0.9°F) dew point
Response Time:5 mins to T95 (dry to wet)
Series ID:EA2-TX
Storage Temperature, Max:60 °C
Storage Temperature, Min:-40 °C
Supply Current:23 mA
Supply Voltage:12 to 28 Vdc
Weight:150 g
