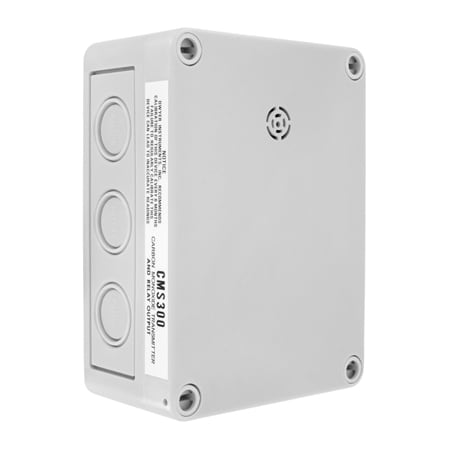

DwyerOmegaModel-CMS300
CMS300
CMS300 CO XMTR
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 5 ppm or 5 %
Applications:Building and Maintenance, HVAC
Calibration Option:N/A
Compliance:CE, UL
Compliance Note:Sensor is UL recognized component for ANSI/UL-2034, UL-2075, E340403, CE
Coverage Area:7500 sq ft
Display Type:N/A
Drift:<5%/Year in Air
Enclosure Type:IP64
Gas Concentration:0 to 300 ppm
Materials:Glass-Filled Polycarbonate
Operating Temperature, Max:122 °F
Operating Temperature, Min:-4 °F
Output Detail:Jumper selectable 4-20 mA (loop powered) or 2-10 V (max. load 2 kΩ)
Output Signal:Current, Voltage
Relative Humidity:15 to 90% RH Constant, 0 to 99% RH Intermittent
Relay Output:Factory Set for Direct Acting
Resolution:1 ppm
Response Time:<45 s to 90%
Sensor Life:5 Years
Sensor Type:Electrochemical
Set Point:Selectable 25, 60, or 150 PPM
Set Point Differential/Hysteresis:3 % scale
Storage Temperature, Max:68 °F
Storage Temperature, Min:32 °F
Switch Rating:NO: 5 A @ 30 Vdc, 250 Vac; NC: 3 A @ 30 Vdc, 250 Vac
Switch Type:SPDT NO/NC, Selectable
Temperature Effect:± 2% Over Range
Weight:1 lb
Zero Setting Adjustable Range:15 Turn Potentiometers
