DwyerOmegaDS821

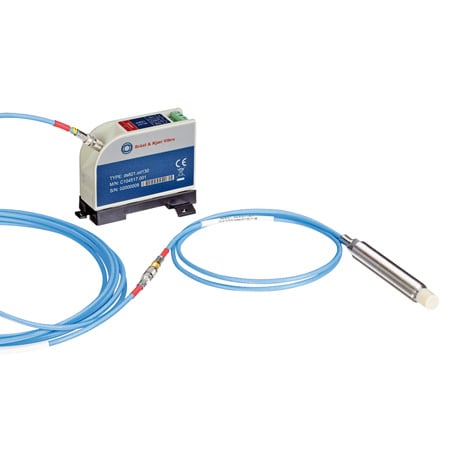

ds821.mc101/1/62/045/015/05/10
2 mm measuring range, complete system
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 10 %
Altitude:Up to 2000m (6561 ft)
Cable Type:Coaxial
Color Options:Blue
Electrical Connection:Coaxial connector (SAA), push-pull self-latching
Electrical Output:0 to Ub + 2 V
Enclosure Ratings:IP68
Frequency Response:DC to 10 kHz (-3 dB damping of the output signal)
Housing Diameter:0.433 in
Housing Length:1.77 in
Impedance Output:50 Ω
Length of Sensor with Integrated Cable:1 m
Measurement Note:Eddy current Mesurment 2 mm (approx. 0.4 … 2.4 mm distance from the object to be measured corresponding to an output signal of approx. -2 VDC … -18 VDC )
Measurement, Max:2 mm
Measurement, Min:0 mm
Nominal ECDS System Length:5 m
Operating Temperature, Max:180 °C
Operating Temperature, Min:-55 °C
Power Consumption:12 mA
Process Connection Size:3/8 in
Process Connection Type:UNF
Sensitivity:-8 mV/μm
Sensor Body Length:45 mm
Supply Power Note:-24 VDC (-18 VDC … -28 VDC)
Supply Voltage:-24 Vdc
Transducer Type:Displacement Measurement
Unthreaded Section:15 mm
Zero/Balance Error:±75 μm
