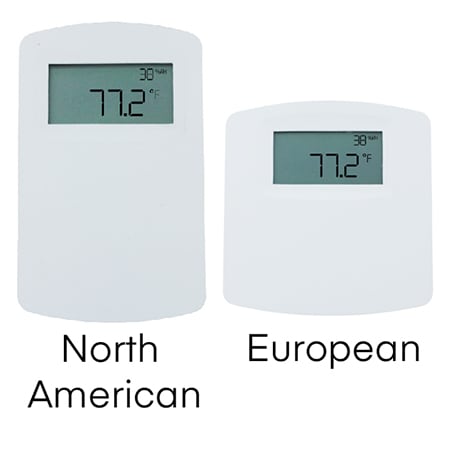

벽걸이형 습도, 온도 및 이슬점 송신기 - 정전용량 센서
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 24개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Applications | Compliance | Current Output Range | Dew Point Temperature Input Range | Display Resolution | Display Type | Electrical Connection | Enclosure Ratings | Hysteresis | Materials | Measurement Type | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Process Temperature, Max | Process Temperature, Min | RH Sensor Drift | Relative Humidity | Relative Humidity Accuracy | Repeatability | Response Time | Sensor Type | Solid State Band Gap Temperature Accuracy | Solid State Band Gap Temperature Input Range | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Voltage Output Range | Weight | Thermistor Input Range | Thermistor Output Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RHP-3N40-LCD가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3N44-LCD가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 4-20 mA/0-5 VDC/0-10 VDC | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor | ± 0.9°F @ 77°F | -20 to 140°F; 0 to 100°F; 40 to 90°F; -4 to 140°F, Switch selectable | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3E44-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 4-20 mA/0-5 VDC/0-10 VDC | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor | ± 0.9°F @ 77°F | -20 to 140°F; 0 to 100°F; 40 to 90°F; -4 to 140°F, Switch selectable | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3E40-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-2E44-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 4-20 mA/0-5 VDC/0-10 VDC | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor | ± 0.9°F @ 77°F | -20 to 140°F; 0 to 100°F; 40 to 90°F; -4 to 140°F, Switch selectable | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-2N40-LCD가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-2E40-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | RH: 1%; Temperature: 0.1°F; Dew point: 1°F | LCD | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3N4B가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C Thermistor Type II | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type II | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C | |
RHP-3N44가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 4-20 mA/0-5 VDC/0-10 VDC | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor | ± 0.9°F @ 77°F | -20 to 140°F; 0 to 100°F; 40 to 90°F; -4 to 140°F, Switch selectable | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3N4A가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C thermistor type III | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type III | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C | |
RHP-3N40가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3E4B가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C Thermistor Type II | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type II | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C | |
RHP-3E4A가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C thermistor type III | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type III | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C | |
RHP-3E40가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-3E44가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 4-20 mA/0-5 VDC/0-10 VDC | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 3% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor | ± 0.9°F @ 77°F | -20 to 140°F; 0 to 100°F; 40 to 90°F; -4 to 140°F, Switch selectable | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-2N4B가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C Thermistor Type II | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type II | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C | |
RHP-2N44가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 4-20 mA/0-5 VDC/0-10 VDC | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor | ± 0.9°F @ 77°F | -20 to 140°F; 0 to 100°F; 40 to 90°F; -4 to 140°F, Switch selectable | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-2N4A가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C thermistor type III | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type III | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C | |
RHP-2N40가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Humidity | North American Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: None | Current, Voltage | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | Capacitive Polymer humidity sensor | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | - | - | |
RHP-2E4B가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | HVAC | CE | 4 to 20 mA | -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable | - | N/A | Screw Terminal | IP20 | ± 0.8% | Polycarbonate | Temperature, Humidity, Dew Point | European Style Wall Mount | 140 °F | -40 °F | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. Temperature Output: 10K Ω @ 25°C Thermistor Type II | Current, Voltage,Thermistor | 140 °F | -4 °F | <0.25% RH/year | 0 to 100% RH | ± 2% RH | ± 0.1% | 8 s | RH: Capacitive Polymer humidity sensor, Temp: 10 kΩ Thermistor Type II | - | - | 176 °F | -40 °F | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC | AC/DC | 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac | 0 to 5 Vdc, 0 to 10 Vdc | 4.4 oz | -40 to 60 °C | 10K Ω @ 25 °C |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
