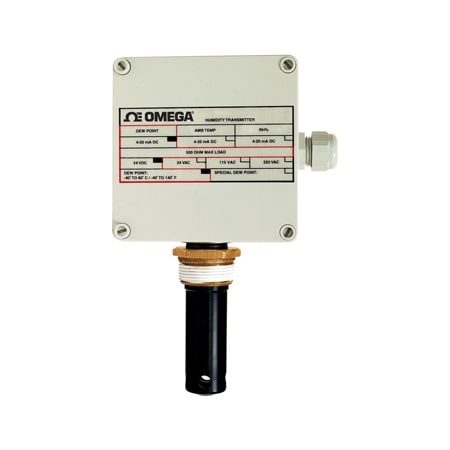

광학 냉각 거울 이슬점 트랜스미터
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 7개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Additional Features 1 | Cable Length | Cable Length, Max | Current, Max | Data Interface | Dew Point Temperature, Max | Dew Point Temperature, Min | Electrical Output | Enclosure Material | Height | Hysteresis | Length | Linear Flow Rate, Max | Measurement Pressure, Min | Measurement Type | Mounting Orientation | Output Detail | Pressure Limits | Pressure Note | Relative Humidity | Repeatability | Response Time | Supply Power Type | Supply Voltage | Temperature Measurement, Max | Temperature Measurement, Min | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RHCM-40-PL-W6,182,230 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Plastic | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Wall Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm | |
RHCM-40-PL-R7,881,010 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Plastic | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Remote Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm | |
RHCM-40-PL-D6,732,260 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Plastic | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Duct Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm | |
RHCM-40-AL-R8,248,380 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Aluminum | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Remote Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm | |
RHCM-40-AL-W6,551,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Aluminum | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Wall Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm | |
RHCM-40-AL-P6,981,910 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Aluminum | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Pipe Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm | |
RHCM-40-AL-D7,103,640 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.2 °C (± 0.36 °F) | For Dew Point - 2 stages of cooling (TEC) with a depression of 60°C; Standard Chrome Plated Mirror | 3 m | 15.2 m | 1 A | RS232 | 60 °C | -40 °C | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | Aluminum | 130 mm | Negligible | 76 mm | 3000 FPM | 0 psi | Dew Point | Duct Mount | 4 to 20 mA: 0 to 250 Ω 0 to 5/10 Vdc: 1 kΩ or higher | Up to 100 psi | 100 psig maximum (higher pressure available on special order) | 1 to 95% | ± 0.05°C | 1°C/second not including settling time | DC | 24 Vdc | 60 °C | -40 °C | 1.4 kg | 130 mm |
