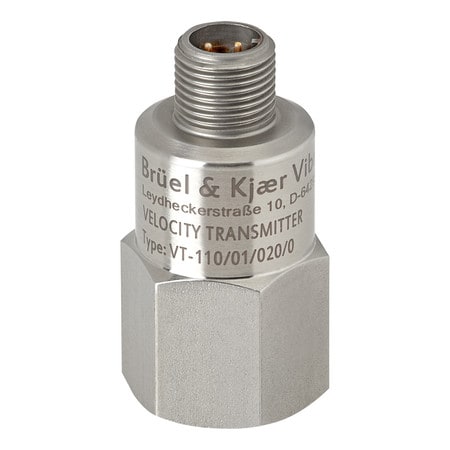

VT-110: B&K Vibro 소형 진동 속도 트랜스미터 (4-20mA 출력)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Additional Features 1 | Applications | Approvals | Cable Length | Capacitance | Detection Range | Electrical Output | Enclosure Ratings | Frequency Input Range | Frequency Note | Ground | Isolation | Loop Resistance, Max | Mounting | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Overload Capacity | Protection | Sensitivity Range | Supply Voltage | Tolerance | Vibration | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VT-110/02/020가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 100mV/g Additional dynamic signal output | Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations | CE | 5 m | 70 pF | 20 mm/sec | 4 to 20 mA | IP67 | 10 Hz to 1 kHz | 3 Hz to 1 kHz | Isolated Case | 100 MΩ | (Vdc power -10V)/20mA | UNF Tapped Hole | Temperature operating_x000D_ • Loop current max. 10 mA -55…+120 °C (-65…+250 °F)_x000D_ • Loop current max. 20 mA -55 …+90 °C (-65…+212 °F) | 120 °C | -55 °C | Analog output_x000D_ • Analog output 4…20 mA, loop powered, proportional to vibration velocity mm/s rms_x000D_ • No vibration 4 mA ±5%_x000D_ • Full scale 20 mA ±5% | 2500 g peak | Overvoltage : Yes,Reverse polarity : Yes | 100 mV/g ± 30 % | 10 to 30 Vdc | ± 30 % | 250 g peak | |
VT-110/02/050가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 100mV/g Additional dynamic signal output | Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations | CE | 5 m | 70 pF | 50 mm/sec | 4 to 20 mA | IP67 | 10 Hz to 1 kHz | 3 Hz to 1 kHz | Isolated Case | 100 MΩ | (Vdc power -10V)/20mA | UNF Tapped Hole | Temperature operating_x000D_ • Loop current max. 10 mA -55…+120 °C (-65…+250 °F)_x000D_ • Loop current max. 20 mA -55 …+90 °C (-65…+212 °F) | 120 °C | -55 °C | Analog output_x000D_ • Analog output 4…20 mA, loop powered, proportional to vibration velocity mm/s rms_x000D_ • No vibration 4 mA ±5%_x000D_ • Full scale 20 mA ±5% | 2500 g peak | Overvoltage : Yes,Reverse polarity : Yes | 100 mV/g ± 30 % | 10 to 30 Vdc | ± 30 % | 250 g peak | |
VT-110/01/050가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 100mV/g Additional dynamic signal output | Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations | CE | 5 m | 70 pF | 50 mm/sec | 4 to 20 mA | IP67 | 3 Hz to 1 kHz | 3 Hz to 1 kHz | Isolated Case | 100 MΩ | (Vdc power -10V)/20mA | UNF Tapped Hole | Temperature operating_x000D_ • Loop current max. 10 mA -55…+120 °C (-65…+250 °F)_x000D_ • Loop current max. 20 mA -55 …+90 °C (-65…+212 °F) | 120 °C | -55 °C | Analog output_x000D_ • Analog output 4…20 mA, loop powered, proportional to vibration velocity mm/s rms_x000D_ • No vibration 4 mA ±5%_x000D_ • Full scale 20 mA ±5% | 2500 g peak | Overvoltage : Yes,Reverse polarity : Yes | 100 mV/g ± 30 % | 10 to 30 Vdc | ± 30 % | 250 g peak | |
VT-110/01/020가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 100mV/g Additional dynamic signal output | Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations | CE | 5 m | 70 pF | 20 mm/sec | 4 to 20 mA | IP67 | 3 Hz to 1 kHz | 3 Hz to 1 kHz | Isolated Case | 100 MΩ | (Vdc power -10V)/20mA | UNF Tapped Hole | Temperature operating_x000D_ • Loop current max. 10 mA -55…+120 °C (-65…+250 °F)_x000D_ • Loop current max. 20 mA -55 …+90 °C (-65…+212 °F) | 120 °C | -55 °C | Analog output_x000D_ • Analog output 4…20 mA, loop powered, proportional to vibration velocity mm/s rms_x000D_ • No vibration 4 mA ±5%_x000D_ • Full scale 20 mA ±5% | 2500 g peak | Overvoltage : Yes,Reverse polarity : Yes | 100 mV/g ± 30 % | 10 to 30 Vdc | ± 30 % | 250 g peak |
