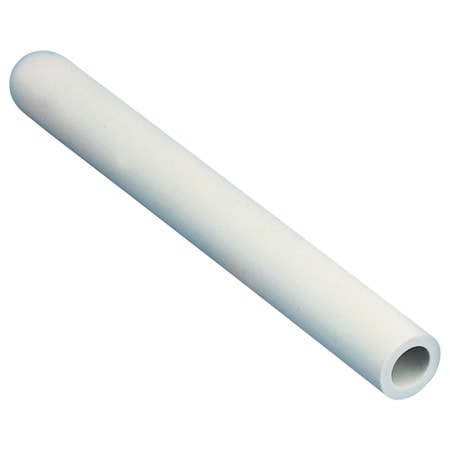

OMEGATITE 650® 보호 튜브 (선택 사양 피팅 포함)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 12개의 상품
| 제품 번호 / 가격 | Brand | Bulk Density | Cold Bend Strength | Cold Bend Strength Note | Critical Temperature | Elastic Modulus | Elastic Modulus Note | Hardness | Hardness Note | Hot Bend Strength | Hot Bend Strength Note | Inner Diameter | Length | Operating Temperature, Max | Operating Temperature, Min | Outer Diameter | Porosity | Process Connection Size | Process Connection Type | Sensing End | Specific Gravity | Thermal Conductivity | Thermal Conductivity Note | Thermal Expansion Coefficient | Thermal Expansion Coefficient Note | Tube Material | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PTRS-1628-6002,528,550 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 16 mm | 600 mm | 1250 °C | 0 °C | 28 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-1628-300-NPT가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 16 mm | 300 mm | 1250 °C | 0 °C | 28 mm | <1 % | 1 1/4 in x 3/4 in | NPT Male | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-1628-3001,427,860 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 16 mm | 300 mm | 1250 °C | 0 °C | 28 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-1628-1501,371,080 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 16 mm | 150 mm | 1250 °C | 0 °C | 28 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-1222-3001,153,870 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 12 mm | 300 mm | 1250 °C | 0 °C | 22 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-1222-6001,724,030 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 12 mm | 600 mm | 1250 °C | 0 °C | 22 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-1222-1501,045,270 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 12 mm | 150 mm | 1250 °C | 0 °C | 22 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-916-3001,029,150 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 9 mm | 300 mm | 1250 °C | 0 °C | 16 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-916-6001,235,330 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 9 mm | 600 mm | 1250 °C | 0 °C | 16 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-916-1501,018,140 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 9 mm | 150 mm | 1250 °C | 0 °C | 16 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-612-6001,018,140 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 6.5 mm | 600 mm | 1250 °C | 0 °C | 12.5 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide | |
PTRS-612-450950,240 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3.24 g/cm³ | 110 kpsi | 758 Mpa, 110 kpsi (25°C) | 950 °C | 4.2E7 psi | 288 GPa, 42 x 10^6 psi | 1650 HV | 1650 VHN, 1 kg load | 58 kpsi | 400 Mpa, 58 kpsi (1200°C) | 6.5 mm | 450 mm | 1250 °C | 0 °C | 12.5 mm | <1 % | None | None | Closed | 3.26 | 21 W/mK | 21 W/mK at 400°C | 3.0 x 10^-6 C^-1 | 3.0 x 10^-6 C^-1 at 20 to 1000°C | Silicon Nitride and Aluminum Oxide |
