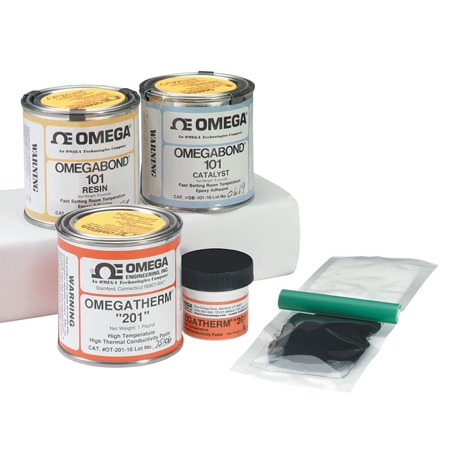

OB-100-OB-200-OT-200 | Britestone

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

로딩 중...

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 8개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Applications	Insulation Note	Material Construction Option	Mechanical Strength Properties	Mix Ratio By Weight	Operating Temperature, Max	Thermal Conductivity	Thermal Conductivity Note	Thermal Expansion Coefficient	Volume	Working Life	수량 / 장바구니
OB-102-1/2가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1/2 oz resin,1/2 oz catalyst	Ceramic, Metal	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: Low stress bonding; Flexible Strength: Low stress bonding	Mix ratio 100 parts material to 3.5 parts catalyst by weight	130 °C	9.99 BTU-in/h-ft2-°F	Very High	-	0.5 oz	45 min@ 25°C/77°F; Curing Schedule:Room temp or Heat 16 to 24 hrs @ 25°C/77°F 4 to 6 hrs @ 45°C/113°F 1 to 2 hrs @ 65°C/149°F
OB-101-1/2가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	one 1/2 oz twin pak	Ceramic, Metal, Paper Products, Plastic, Wood	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: 2200 psi; Flexible Strength: 12000 psi	100 parts of Part A (by weight) and 180 parts of Part B (by weight)	105 °C	7.2 BTU-in/h-ft2-°F	High	20 x 10^–6 in/in/°F	0.5 oz	30 min@ 25°C/77°F; Curing Schedule:Room temp
OB-200-16299,970 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 lb resin, 2 oz catalyst kit	Ceramic, Metal, Paper Products, Plastic, Wood	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: 2700 psi; Flexible Strength: 17000 psi	100 parts of OB-200 Resin to 10 parts of OB-200 Catalyst by weight	260 °C	9.6 BTU-in/h-ft2-°F	Very High	21 x 10^–6 in/in/°F	16 oz	24 hr@ 25°C/77°F; Curing Schedule:Elevated temp
OB-102-16가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	16 oz resin, 1 oz catalyst	Ceramic, Metal	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: Low stress bonding; Flexible Strength: Low stress bonding	Mix ratio 100 parts material to 3.5 parts catalyst by weight	130 °C	9.99 BTU-in/h-ft2-°F	Very High	-	16 oz	45 min@ 25°C/77°F; Curing Schedule:Room temp or Heat 16 to 24 hrs @ 25°C/77°F 4 to 6 hrs @ 45°C/113°F 1 to 2 hrs @ 65°C/149°F
OB-101-16가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	8 oz resin, 8 oz catalyst kit	Ceramic, Metal, Paper Products, Plastic, Wood	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: 2200 psi; Flexible Strength: 12000 psi	100 parts of Part A (by weight) and 180 parts of Part B (by weight)	105 °C	7.2 BTU-in/h-ft2-°F	High	20 x 10^–6 in/in/°F	16 oz	30 min@ 25°C/77°F; Curing Schedule:Room temp
OB-200-2177,390 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	one 2 oz twin pak	Ceramic, Metal, Paper Products, Plastic, Wood	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: 2700 psi; Flexible Strength: 17000 psi	100 parts of OB-200 Resin to 10 parts of OB-200 Catalyst by weight	260 °C	9.6 BTU-in/h-ft2-°F	Very High	21 x 10^–6 in/in/°F	2 oz	24 hr@ 25°C/77°F; Curing Schedule:Elevated temp
OB-102-2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2 oz resin, 1/2 oz catalyst	Ceramic, Metal	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: Low stress bonding; Flexible Strength: Low stress bonding	Mix ratio 100 parts material to 3.5 parts catalyst by weight	130 °C	9.99 BTU-in/h-ft2-°F	Very High	-	2 oz	45 min@ 25°C/77°F; Curing Schedule:Room temp or Heat 16 to 24 hrs @ 25°C/77°F 4 to 6 hrs @ 45°C/113°F 1 to 2 hrs @ 65°C/149°F
OB-101-2가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	one 2 oz twin pak	Ceramic, Metal, Paper Products, Plastic, Wood	10¹⁵ ohm-cm ; Very High	Epoxy Adhesive	Tensile Shear: 2200 psi; Flexible Strength: 12000 psi	100 parts of Part A (by weight) and 180 parts of Part B (by weight)	105 °C	7.2 BTU-in/h-ft2-°F	High	20 x 10^–6 in/in/°F	2 oz	30 min@ 25°C/77°F; Curing Schedule:Room temp
