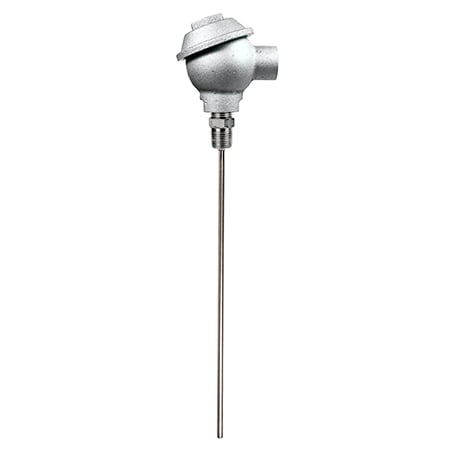

산업용 RTD (PT100) 프로브 - 주철 보호 헤드 장착
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 27개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Additional Features 1 | Enclosure Ratings | Head Material | Nominal Resistance | Nominal Resistance Note | Number of Wires | Probe Diameter | Probe Length | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Protection Head | Response Time | Sheath Material | Shock | Temperature Coefficient | Temperature Probe Style | Temperature Sensor Type | Vibration | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PR-12L-4-100-1/4-12188,290 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 4 | 0.25 in | 12 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-3/16-4181,020 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.1875 in | 4 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 2.8 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/4-24202,770 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/4-18195,500 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 18 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/4-12145,930 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 12 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12H-3-100-1/4-24223,950 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12H-3-100-1/4-18204,810 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 18 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12E-4-100-1/4-12285,990 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from --100 to 450°C (-148 to 842°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 4 | 0.25 in | 12 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12H-3-100-1/4-12242,440 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 12 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12E-3-100-3/16-4252,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from --100 to 450°C (-148 to 842°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.1875 in | 4 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 9.8 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12E-3-100-1/4-24336,570 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from --100 to 450°C (-148 to 842°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 24 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12E-3-100-1/4-18311,260 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from --100 to 450°C (-148 to 842°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 18 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12E-3-100-1/4-12285,990 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from --100 to 450°C (-148 to 842°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 12 in | 1/2 in | NPT Male | 600 °C | -200 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 10.6 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-4-100-1/4-9가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 4 | 0.25 in | 9 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/8-6181,020 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.125 in | 6 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 2.4 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-4-100-1/4-6178,610 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 4 | 0.25 in | 6 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/4-9가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 9 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/4-4160,210 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 4 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12L-3-100-1/4-2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A per IEC60751 | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 2 in | 1/2 in | NPT Male | 250 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 3.25 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day | |
PR-12H-3-100-1/4-6214,370 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | Class A from -50 to 300°C (-58 to 572°F); or else Class B | Low Temperature | IP67 | Cast Iron | 100 Ω | 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard | 3 | 0.25 in | 6 in | 1/2 in | NPT Male | 450 °C | -50 °C | NB1 Cast Iron, Screw Cover, Inside Thread, Standard | 5.41 sec | 316 Stainless Steel | IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day | 0.00385 Ω/Ω/°C standard | N/A | RTD | IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day |
