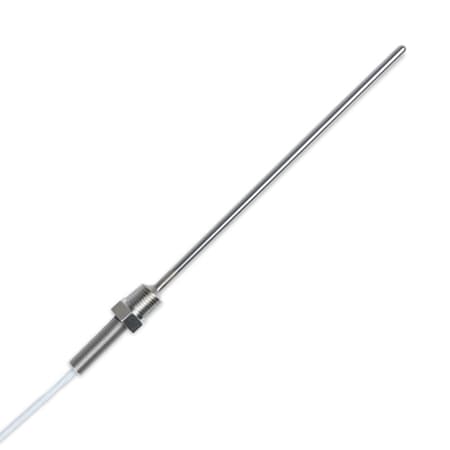

나사산 장착형 및 리드 와이어가 있는 RTD 프로브
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Cable Clamp | Cable Length | Cable Material | Electrical Connection | Insulation | Insulation Note | Nominal Resistance | Nominal Resistance/Curve Note | Number of Wires | Probe Diameter | Probe Length | Probe Type | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Sensing Element | Sheath Material | Temperature Probe Style | Temperature Sensor Type | Wire Gauge | Wire Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RTD-810-HH804-CONNECTOR가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | - | 40 in | Nickel, Copper | HH804 Connector | PFA | 1 m (40") long PFA insulated with MTP Connector | 100 Ω | Provided with High-Accuracy Class “A” 100 Ω Element (Standard) | 3 | 0.125 in | 4.5 in | High-Accuracy Fluid Immersion RTD Sensors | 1/8 in | NPT Male | 750 °C | -200 °C | 100 Ω Class “A” DIN Platinum Element | 304 Stainless Steel | Immersion Probe | RTD | 26 AWG | Stranded | |
RTD-810-TA4F가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | - | 40 in | Nickel, Copper | TA4 Female Connector | PFA | 1 m (40") long PFA with TA3F connector | 100 Ω | Provided with High-Accuracy Class “A” 100 Ω Element (Standard) | 3 | 0.125 in | 4.5 in | High-Accuracy Fluid Immersion RTD Sensors | 1/8 in | NPT Male | 750 °C | -200 °C | 100 Ω Class “A” DIN Platinum Element | 304 Stainless Steel | Immersion Probe | RTD | 26 AWG | Stranded | |
RTD-810-TA3F291,880 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | - | 40 in | Nickel, Copper | 3.5 mm TS Plug | PFA | 1 m (40") long PFA with TA3F connector | 100 Ω | Provided with High-Accuracy Class “A” 100 Ω Element (Standard) | 3 | 0.125 in | 4.5 in | High-Accuracy Fluid Immersion RTD Sensors | 1/8 in | NPT Male | 750 °C | -200 °C | 100 Ω Class “A” DIN Platinum Element | 304 Stainless Steel | Immersion Probe | RTD | 26 AWG | Stranded | |
RTD-810-OTP가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | PCLM | 40 in | Nickel, Copper | 3-Prong Standard Male Thermocouple Connector | PFA | 1 m (40") long PFA with OTP connector | 100 Ω | Provided with High-Accuracy Class “A” 100 Ω Element (Standard) | 3 | 0.125 in | 4.5 in | High-Accuracy Fluid Immersion RTD Sensors | 1/8 in | NPT Male | 750 °C | -200 °C | 100 Ω Class “A” DIN Platinum Element | 304 Stainless Steel | Immersion Probe | RTD | 26 AWG | Stranded | |
RTD-810-120가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | - | 120 in | Nickel, Copper | 3-Prong Miniature Male Thermocouple Connector | PFA | 1 m (40") long PFA insulated with MTP Connector | 100 Ω | Provided with High-Accuracy Class “A” 100 Ω Element (Standard) | 3 | 0.125 in | 4.5 in | High-Accuracy Fluid Immersion RTD Sensors | 1/8 in | NPT Male | 750 °C | -200 °C | 100 Ω Class “A” DIN Platinum Element | 304 Stainless Steel | Immersion Probe | RTD | 26 AWG | Stranded | |
RTD-810253,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Class A | PCLM-MTP | 40 in | Nickel, Copper | 3-Prong Miniature Male Thermocouple Connector | PFA | 1 m (40") long PFA insulated with MTP Connector | 100 Ω | Provided with High-Accuracy Class “A” 100 Ω Element (Standard) | 3 | 0.125 in | 4.5 in | High-Accuracy Fluid Immersion RTD Sensors | 1/8 in | NPT Male | 750 °C | -200 °C | 100 Ω Class “A” DIN Platinum Element | 304 Stainless Steel | Immersion Probe | RTD | 26 AWG | Stranded |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
