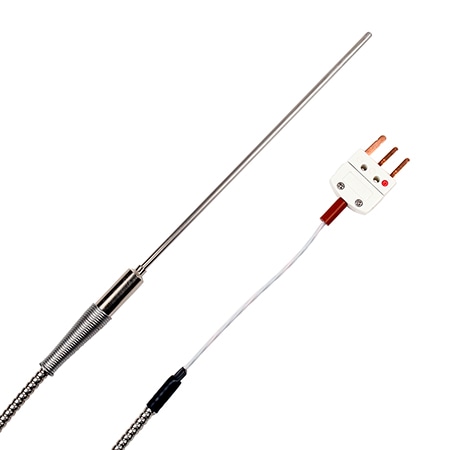

PR-10-BX | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Cable Length	Cable Material	Electrical Connection	Enclosure Ratings	Insulation	Nominal Resistance	Nominal Resistance/Curve Note	Number of Wires	Probe Diameter	Probe Length	Probe Type	Process Temperature, Max	Process Temperature, Min	Response Time, Max	Sheath Material	Shock	Temperature Coefficient	Temperature Coefficient Note	Temperature Probe Style	Temperature Sensor Type	Vibration	Wire Gauge	Wire Termination Temperature, Max	수량 / 장바구니
PR-10H-3-100-1/4-12-BX가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Class A from -50 to 300°C (-58 to 572°F); or else Class B	40 in	PFA	Stripped Leads	IP67	PFA with Armored Cable	100 Ω	100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard	3	0.25 in	12 in	RTD Probe with Insulated Wire and BX Armored Cable	450 °C	-50 °C	5.41 sec	316 Stainless Steel	IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day	0.00385Ω/Ω/°C	α=0.00385Ω/Ω/°C	Immersion Probe	RTD	IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day	26 AWG	250 °C

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Cable Length

Cable Material

Electrical Connection

Enclosure Ratings

Insulation

Nominal Resistance

Nominal Resistance/Curve Note

Number of Wires

Probe Diameter

Probe Length

Probe Type

Process Temperature, Max

Process Temperature, Min

Response Time, Max

Sheath Material

Shock

Temperature Coefficient

Temperature Coefficient Note

Temperature Probe Style

Temperature Sensor Type

Vibration

Wire Gauge

Wire Termination Temperature, Max

수량 / 장바구니

PR-10H-3-100-1/4-12-BX가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Class A from -50 to 300°C (-58 to 572°F); or else Class B

40 in

PFA

Stripped Leads

IP67

PFA with Armored Cable

100 Ω

100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard

0.25 in

12 in

RTD Probe with Insulated Wire and BX Armored Cable

450 °C

-50 °C

5.41 sec

316 Stainless Steel

IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day

0.00385Ω/Ω/°C

α=0.00385Ω/Ω/°C

Immersion Probe

RTD

IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day

26 AWG

250 °C
