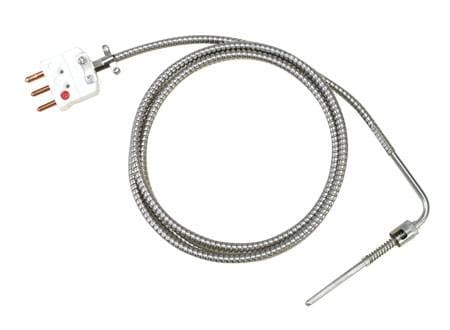

CF-000-090-BT-000-090-RTD

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 46개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Bend	Cable Length	Cable Material	Cold End Termination	Electrical Connection	Insulation	Nominal Resistance	Nominal Resistance/Curve Note	Number of Wires	Probe Diameter	Probe Length	Probe Type	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Sensing Element	Sheath Material	Temperature Probe Style	Temperature Sensor Type	Wire Gauge	Wire Type
BT-090-RTD-2 1/4-60-1-DUAL가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Dual Element Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-4 1/2-60-1-CC가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	4.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	480 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-3 1/2-120-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	120 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	3.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-000-RTD-2 1/4-120-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Straight	120 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-000-RTD-2 1/4-360-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Straight	360 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-9 3/4-60-2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	2	3-Prong Standard Male Thermocouple Connector	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	9.75 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-4 1/2-60-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	4.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-3 1/2-60-2343,660 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	2	3-Prong Standard Male Thermocouple Connector	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	3.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-2 1/4-60-3가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	3	3-Prong Standard Male Thermocouple Connector	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-3 1/2-60-1345,270 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	3.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-2 1/4-60-2354,360 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	2	3-Prong Standard Male Thermocouple Connector	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-090-RTD-2 1/4-60-1326,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-000-RTD-3 1/2-60-2334,110 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Straight	60 in	Nickel, Copper	2	3-Prong Standard Male Thermocouple Connector	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	3.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-000-RTD-2 1/4-60-2334,110 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Straight	60 in	Nickel, Copper	2	3-Prong Standard Male Thermocouple Connector	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-000-RTD-3 1/2-60-1342,190 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Straight	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	3.5 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
BT-000-RTD-2 1/4-60-1342,190 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	Straight	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2.25 in	Bayonet Style RTD Probes	-	Bayonet Fitting	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Immersion Probe	RTD	26 AWG	Stranded
CF-090-RTD-4-60-1-CC가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	4 in	Bayonet Style RTD Probes	1/8 in	NPT Male	480 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Dual Element Immersion Probe	RTD	26 AWG	Stranded
CF-090-RTD-2-60-1-CC가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	60 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	2 in	Bayonet Style RTD Probes	1/8 in	NPT Male	480 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Dual Element Immersion Probe	RTD	26 AWG	Stranded
CF-090-RTD-4-360-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	360 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	4 in	Bayonet Style RTD Probes	1/8 in	NPT Male	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Dual Element Immersion Probe	RTD	26 AWG	Stranded
CF-090-RTD-6-360-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Class A	90 °	360 in	Nickel, Copper	1	Spade Lugs	PFA with Armored Cable	100 Ω	Precision 100 Ω Class “A” Thin Film DIN Platinum Element	3	0.1875 in	6 in	Bayonet Style RTD Probes	1/8 in	NPT Male	260 °C	-200 °C	100 Ω Class “A” DIN Platinum Element	304 Stainless Steel	Dual Element Immersion Probe	RTD	26 AWG	Stranded

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Bend

Cable Length

Cable Material

Cold End Termination

Electrical Connection

Insulation

Nominal Resistance

Nominal Resistance/Curve Note

Number of Wires

Probe Diameter

Probe Length

Probe Type

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Sensing Element

Sheath Material

Temperature Probe Style

Temperature Sensor Type

Wire Gauge

Wire Type

수량 / 장바구니

BT-090-RTD-2 1/4-60-1-DUAL가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Dual Element Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-4 1/2-60-1-CC가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

4.5 in

Bayonet Style RTD Probes

Bayonet Fitting

480 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-3 1/2-120-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

120 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

3.5 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-000-RTD-2 1/4-120-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Straight

120 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-000-RTD-2 1/4-360-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Straight

360 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-9 3/4-60-2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

3-Prong Standard Male Thermocouple Connector

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

9.75 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-4 1/2-60-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

4.5 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-3 1/2-60-2343,660 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

3-Prong Standard Male Thermocouple Connector

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

3.5 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-2 1/4-60-3가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

3-Prong Standard Male Thermocouple Connector

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-3 1/2-60-1345,270 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

3.5 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-2 1/4-60-2354,360 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

3-Prong Standard Male Thermocouple Connector

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-090-RTD-2 1/4-60-1326,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-000-RTD-3 1/2-60-2334,110 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Straight

60 in

Nickel, Copper

3-Prong Standard Male Thermocouple Connector

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

3.5 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-000-RTD-2 1/4-60-2334,110 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Straight

60 in

Nickel, Copper

3-Prong Standard Male Thermocouple Connector

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-000-RTD-3 1/2-60-1342,190 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Straight

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

3.5 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

BT-000-RTD-2 1/4-60-1342,190 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

Straight

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2.25 in

Bayonet Style RTD Probes

Bayonet Fitting

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Immersion Probe

RTD

26 AWG

Stranded

CF-090-RTD-4-60-1-CC가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

4 in

Bayonet Style RTD Probes

1/8 in

NPT Male

480 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Dual Element Immersion Probe

RTD

26 AWG

Stranded

CF-090-RTD-2-60-1-CC가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

60 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

2 in

Bayonet Style RTD Probes

1/8 in

NPT Male

480 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Dual Element Immersion Probe

RTD

26 AWG

Stranded

CF-090-RTD-4-360-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

360 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

4 in

Bayonet Style RTD Probes

1/8 in

NPT Male

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Dual Element Immersion Probe

RTD

26 AWG

Stranded

CF-090-RTD-6-360-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Class A

90 °

360 in

Nickel, Copper

Spade Lugs

PFA with Armored Cable

100 Ω

Precision 100 Ω Class “A” Thin Film DIN Platinum Element

0.1875 in

6 in

Bayonet Style RTD Probes

1/8 in

NPT Male

260 °C

-200 °C

100 Ω Class “A” DIN Platinum Element

304 Stainless Steel

Dual Element Immersion Probe

RTD

26 AWG

Stranded
