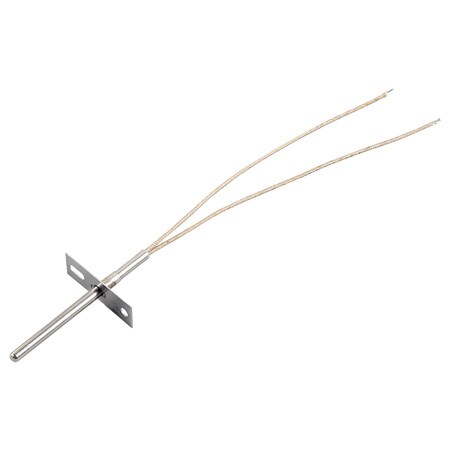

RTD-870-RTD-880 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Cable Length	Cable Material	Insulation	Insulation Note	Nominal Resistance	Nominal Resistance/Curve Note	Number of Wires	Probe Diameter	Probe Length	Probe Type	Process Temperature, Max	Process Temperature, Min	Sensing Element	Sheath Material	Temperature Coefficient	Temperature Coefficient Note	Temperature Probe Style	Temperature Sensor Type	Wire Gauge	Wire Type	수량 / 장바구니
RTD-880-100 OHMS126,410 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	6 in	Nickel, Copper	Fiberglass	24 AWG stranded nickel-plated copper, fiberglass insulated lead wires.	100 Ω	Element Resistance at 0° C: 100 = 100 Ω	2	0.195 in	6 in	Bracket Mounted RTD Probes	500 °C	-70 °C	100 Ω Class “B” DIN Platinum Element	316 Stainless Steel	0.00385Ω/Ω/°C	α=0.00385Ω/Ω/°C	Air Probe	RTD	24 AWG	Stranded

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Cable Length

Cable Material

Insulation

Insulation Note

Nominal Resistance

Nominal Resistance/Curve Note

Number of Wires

Probe Diameter

Probe Length

Probe Type

Process Temperature, Max

Process Temperature, Min

Sensing Element

Sheath Material

Temperature Coefficient

Temperature Coefficient Note

Temperature Probe Style

Temperature Sensor Type

Wire Gauge

Wire Type

수량 / 장바구니

RTD-880-100 OHMS126,410 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

6 in

Nickel, Copper

Fiberglass

24 AWG stranded nickel-plated copper, fiberglass insulated lead wires.

100 Ω

Element Resistance at 0° C: 100 = 100 Ω

0.195 in

6 in

Bracket Mounted RTD Probes

500 °C

-70 °C

100 Ω Class “B” DIN Platinum Element

316 Stainless Steel

0.00385Ω/Ω/°C

α=0.00385Ω/Ω/°C

Air Probe

RTD

24 AWG

Stranded
